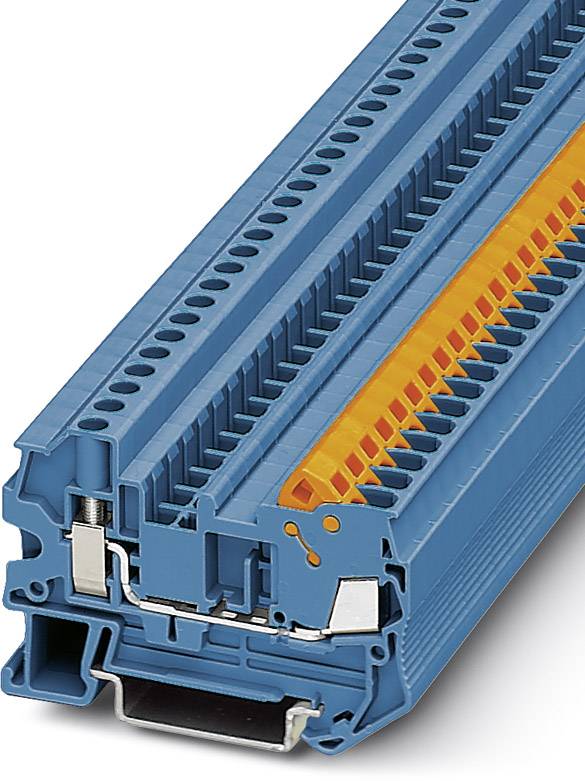

Feed-through terminal block QTCU 2,5 BU 3206542 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Total (€ 1.51 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block QTCU 2,5 BU
- QTCU 2,5 BU
Technical specifications
- Product type
Serial continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3206542
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTCU 2,5 BU
- Dim
(L x W x H) 62.6 x 6.2 x 42.8 mm
- Width
6.2 mm
- Height
42.8 mm
- Length
62.6 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718810 Feed-through terminal block QTCU 2,5 BU 3206542 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718810 Feed-through terminal block QTCU 2,5 BU 3206542 Phoenix Contact
Description
Feed-through terminal block, Connection type: Quick connection, Screw connection, Cross section: 0.5 mm² - 2.5 mm², AWG :20- 14, Width: 6.2 mm, Color: blue, Mounting: NS 35/7,5, NS 35/15
