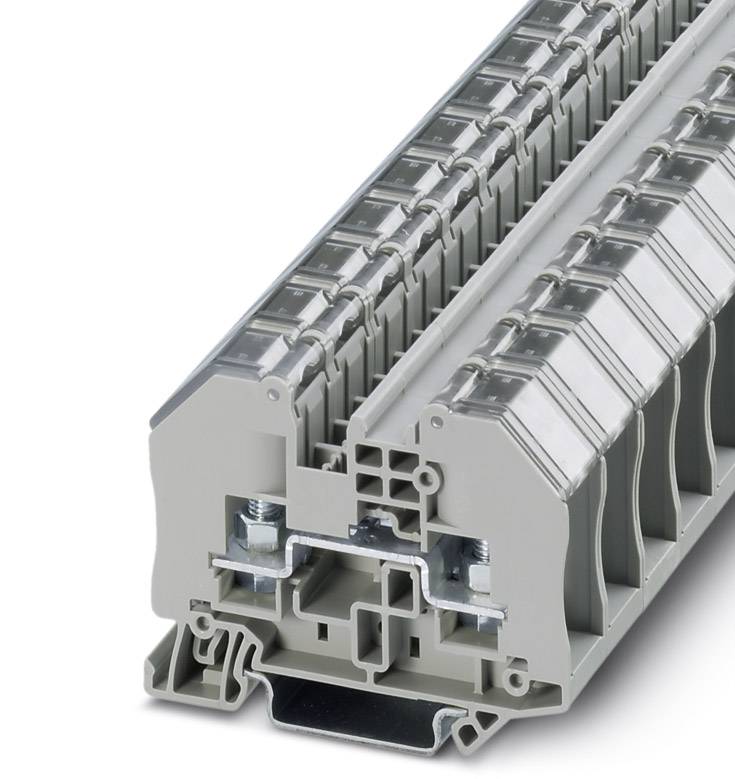

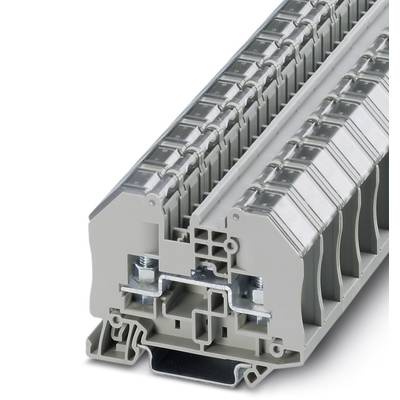

Feed-through terminal block RTO 5-TC 3049961 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Bolt fixings
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.61 / piece)
€ 180.66
plus VAT.
Only 3 Set(s) available
Highlights & Details
Feed-through terminal block RTO 5-TC
- RTO 5-TC
Technical specifications
- Product type
Continuity
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.1 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
27
- AWG max.
10
- Clamp width
16.3 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
3049961
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
RTO 5-TC
- Dim
(L x W x H) 66 x 16.3 x 51 mm
- Width
16.3 mm
- Height
51 mm
- Length
66 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715593 Feed-through terminal block RTO 5-TC 3049961 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715593 Feed-through terminal block RTO 5-TC 3049961 Phoenix Contact
Description
Feed-through terminal block with bolt connection technology and transparent safety contact hood, cross section: 0.1 - 6 mm², AWG: 26 - 10, width 16.3 mm, color: gray
