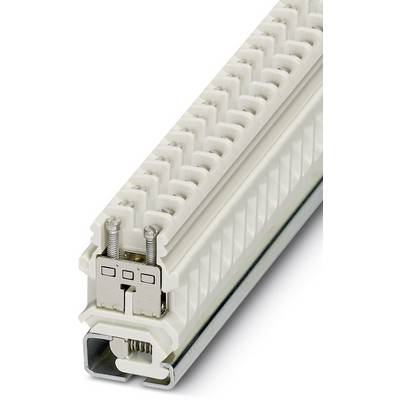

Image similar

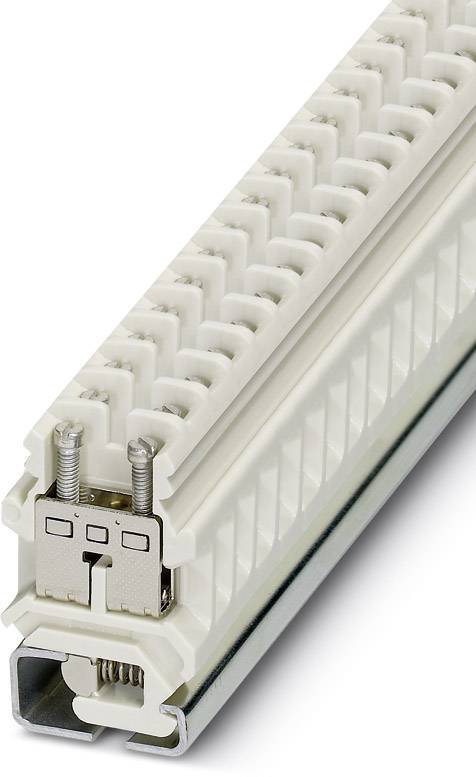

Image similar
Feed-through terminal block SSK 116 KER-EX 0503057 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 20.49 / piece)
€ 1,024.37
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block SSK 116 KER-EX
- SSK 116 KER-EX
Technical specifications
- Product type
Serial continuity
- Features
Explosion-proof
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.4 mm
- No. of rows
1
- Number of pins
2
- Factory colour
White
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
630 V
- Stripping length (max.)
11 mm
- Manufacturer part #
0503057
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
SSK 116 KER-EX
- Dim
(L x W x H) 38 x 10.4 x 55 mm
- Width
10.4 mm
- Height
55 mm
- Length
38 mm
- Flammability rating
V0
- Insulation material
Ceramic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565045 Feed-through terminal block SSK 116 KER-EX 0503057 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565045 Feed-through terminal block SSK 116 KER-EX 0503057 Phoenix Contact
Description
Feed-through terminal block, connection method: screw connection, cross section: 0.5 mm² - 16 mm², 20 - 6 AWG, width: 10.4 mm, color: white, mounting type: NS 3, insulation material: ceramic
