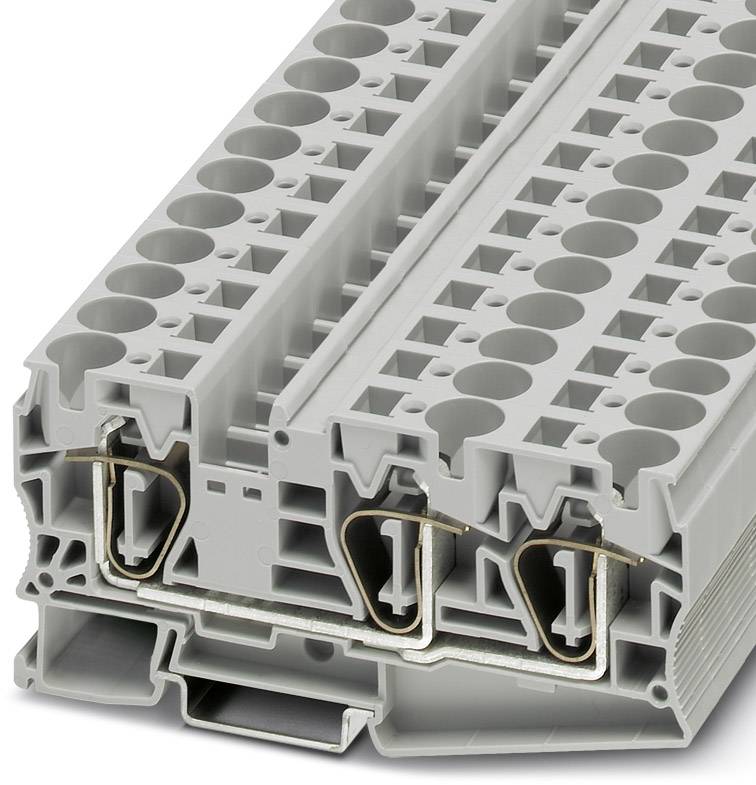

Feed-through terminal block ST 16-TWIN 3035328 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
76 A
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 5.38 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block ST 16-TWIN
- ST 16-TWIN
Technical specifications
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
24
- AWG max.
6
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3035328
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
ST 16-TWIN
- Dim
(L x W x H) 107.8 x 12.2 x 51.5 mm
- Width
12.2 mm
- Height
51.5 mm
- Length
107.8 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 586613 Feed-through terminal block ST 16-TWIN 3035328 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586613 Feed-through terminal block ST 16-TWIN 3035328 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² - 25 mm², AWG: 24 - 4, Width: 12.2 mm, Color: gray, Mounting type: NS 35/15, NS 35/7,5
