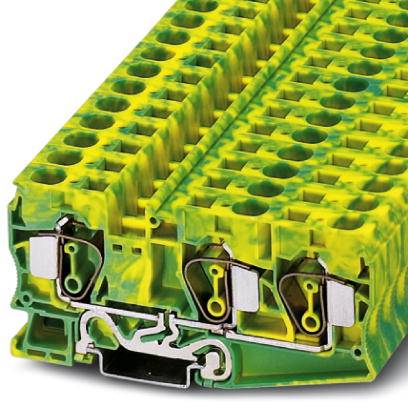

Feed-through terminal block ST 16-TWIN-PE 3035344 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Content
25 pc(s)
Datasheet (PDF)
130 Set(s)
Sales and shipping:
Number (Package size 25 pc(s))
Total (€ 11.73 / piece)
€
Highlights & Details
Feed-through terminal block ST 16-TWIN-PE
- ST 16-TWIN-PE
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
24
- AWG max.
4
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Green
Yellow
- Stripping length (max.)
18 mm
- Manufacturer part #
3035344
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
ST 16-TWIN-PE
- Dim
(L x W x H) 107.8 x 12.2 x 51.5 mm
- Width
12.2 mm
- Height
51.5 mm
- Length
107.8 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 716650 Feed-through terminal block ST 16-TWIN-PE 3035344 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716650 Feed-through terminal block ST 16-TWIN-PE 3035344 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² - 25 mm², AWG: 24 - 4, Width: 12.2 mm, Color: green-yellow, Mounting type: NS 35/15, NS 35/7,5
