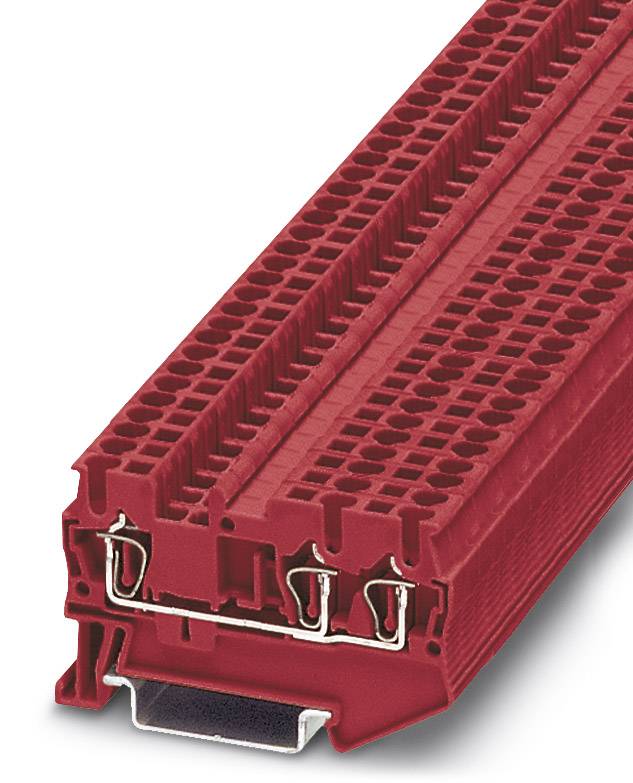

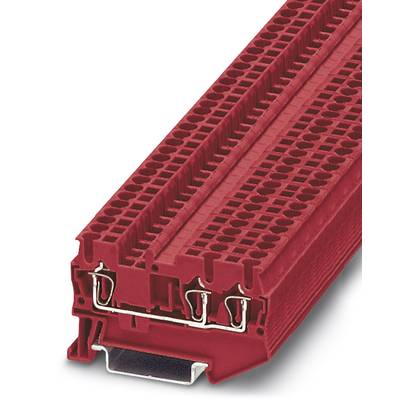

Feed-through terminal block ST 2,5-TWIN RD 3031995 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
37 Set(s)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 1.08 / piece)
€
Highlights & Details
Feed-through terminal block ST 2,5-TWIN RD
- ST 2,5-TWIN RD
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Red
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3031995
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 2,5-TWIN RD
- Dim
(L x W x H) 60.5 x 5.2 x 36.5 mm
- Width
5.2 mm
- Height
36.5 mm
- Length
60.5 mm
- Flammability rating
V0
Documents & Downloads
Datasheet
Datasheet 719936 Feed-through terminal block ST 2,5-TWIN RD 3031995 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719936 Feed-through terminal block ST 2,5-TWIN RD 3031995 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Color: red, Mounting type: NS 35/7,5, NS 35/15
