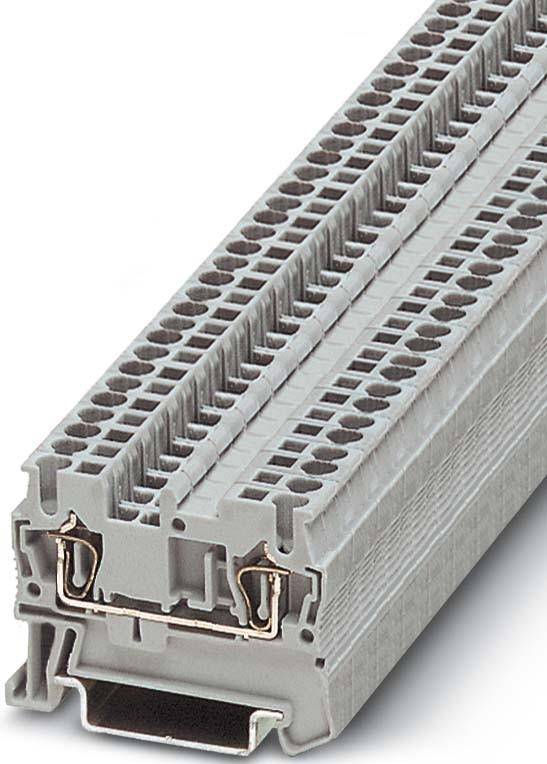

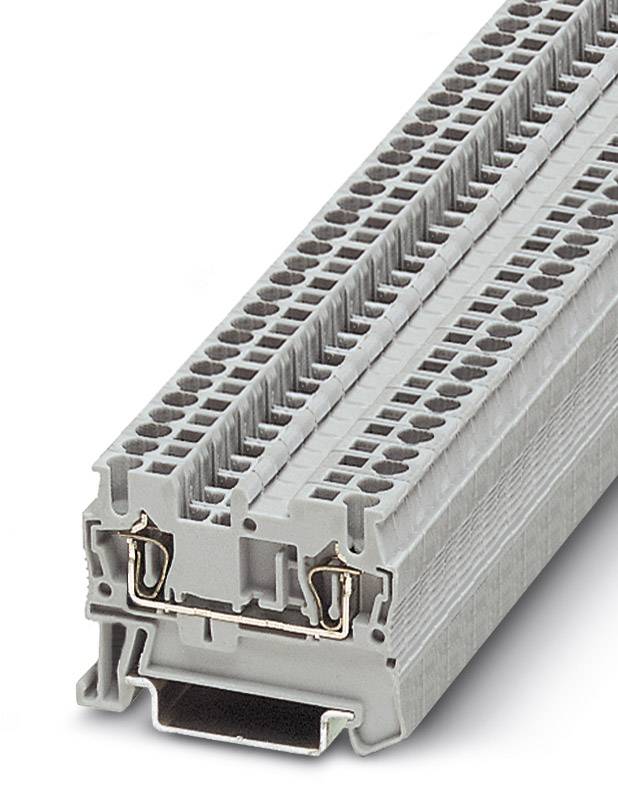

Feed-through terminal block ST 2,5 BN 3035360 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Total (€ 1.01 / piece)
€ 50.41
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block ST 2,5 BN
- ST 2,5 BN
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3035360
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 2,5 BN
- Dim
(L x W x H) 48.5 x 5.2 x 36.5 mm
- Width
5.2 mm
- Height
36.5 mm
- Length
48.5 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566174 Feed-through terminal block ST 2,5 BN 3035360 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566174 Feed-through terminal block ST 2,5 BN 3035360 Phoenix Contact
Description
Feed-through modular terminal block, connection method: spring-cage connection, cross section: 0.08 mm² - 4 mm², AWG 28 - 12, width: 5.2 mm, color: brown, mounting: NS 35/7.5, NS 35/15
