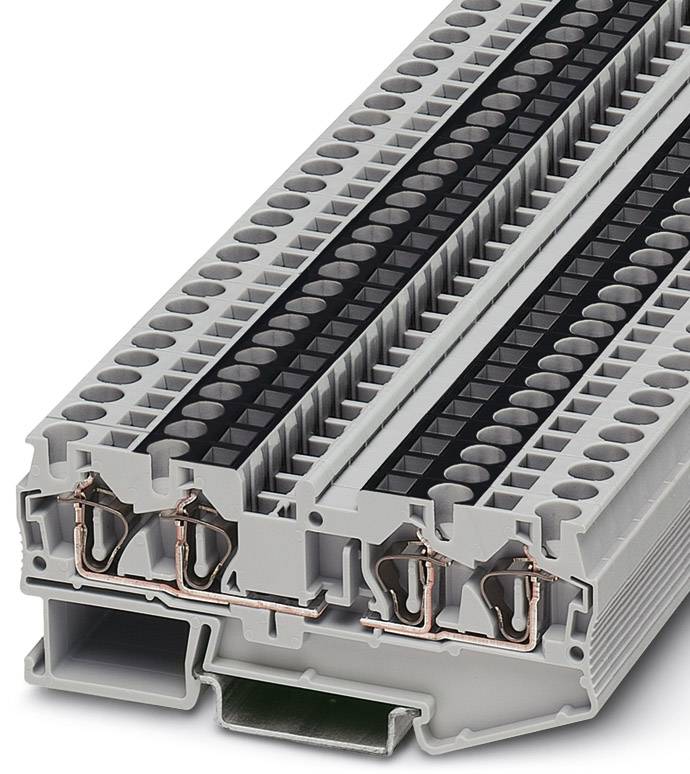

Image similar

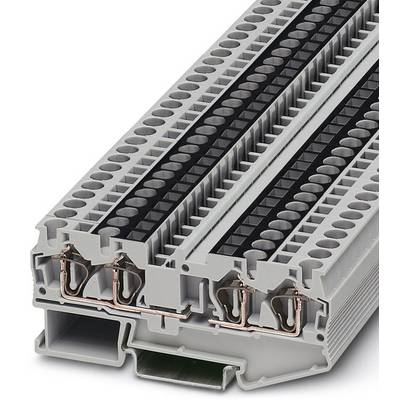

Image similar
Feed-through terminal block ST 4-QUATTRO-U 3038639 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
NS 32/35 rail mount
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Pins per row
4
- Number of pins
2
- Factory colour
Grey
- Nominal current
28 A
- Nominal current - rounded value
28 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3038639
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 4-QUATTRO-U
- Dim
(L x W x H) 87 x 6.2 x 36.5 mm
- Width
6.2 mm
- Height
36.5 mm
- Length
87 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565646 Feed-through terminal block ST 4-QUATTRO-U 3038639 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565646 Feed-through terminal block ST 4-QUATTRO-U 3038639 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
