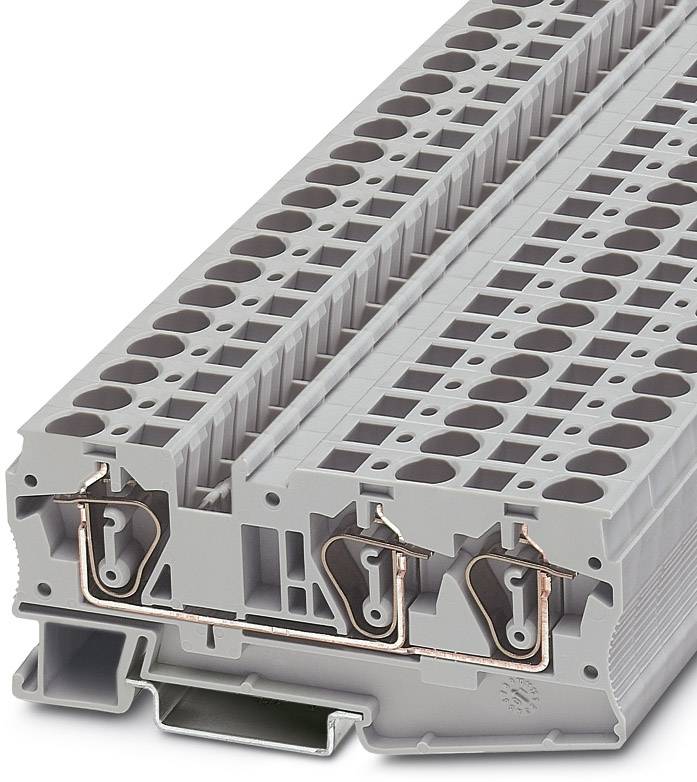

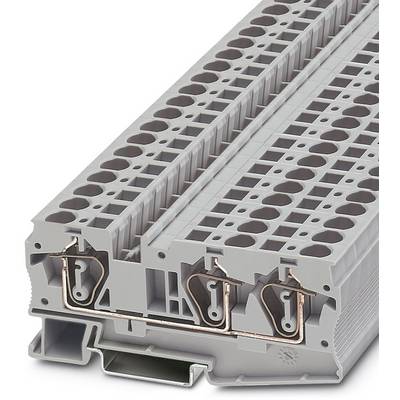

Feed-through terminal block ST 6-TWIN 3036466 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.86 / piece)
€ 142.85
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block ST 6-TWIN
- ST 6-TWIN
Technical specifications
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3036466
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 6-TWIN
- Dim
(L x W x H) 90.5 x 8.2 x 43.5 mm
- Width
8.2 mm
- Height
43.5 mm
- Length
90.5 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565622 Feed-through terminal block ST 6-TWIN 3036466 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565622 Feed-through terminal block ST 6-TWIN 3036466 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
