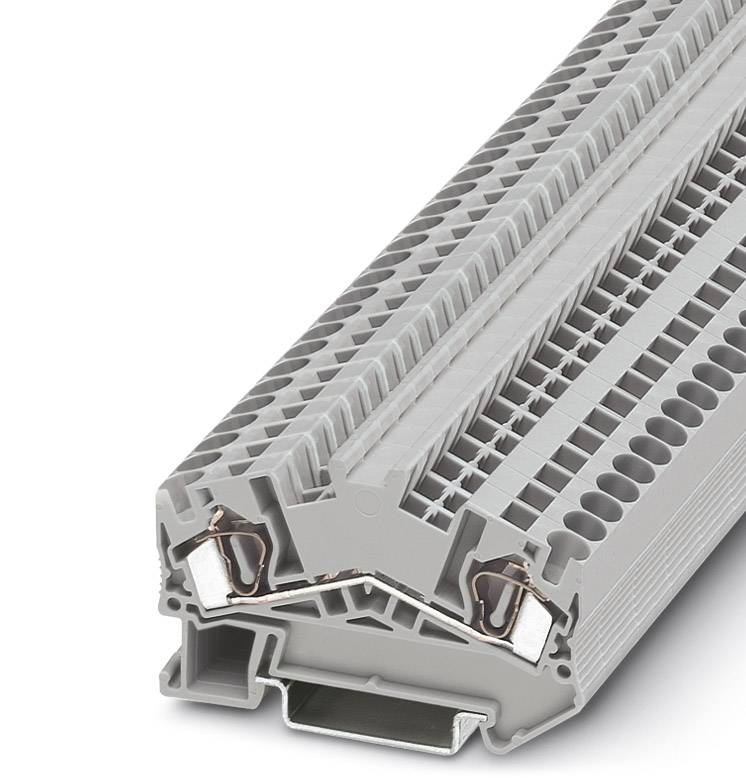

Feed-through terminal block STS 4 3036424 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Total (€ 1.38 / piece)
€ 68.90
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block STS 4
- STS 4
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3036424
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STS 4
- Dim
(L x W x H) 64.5 x 6.2 x 43 mm
- Width
6.2 mm
- Height
43 mm
- Length
64.5 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 719399 Feed-through terminal block STS 4 3036424 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719399 Feed-through terminal block STS 4 3036424 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
