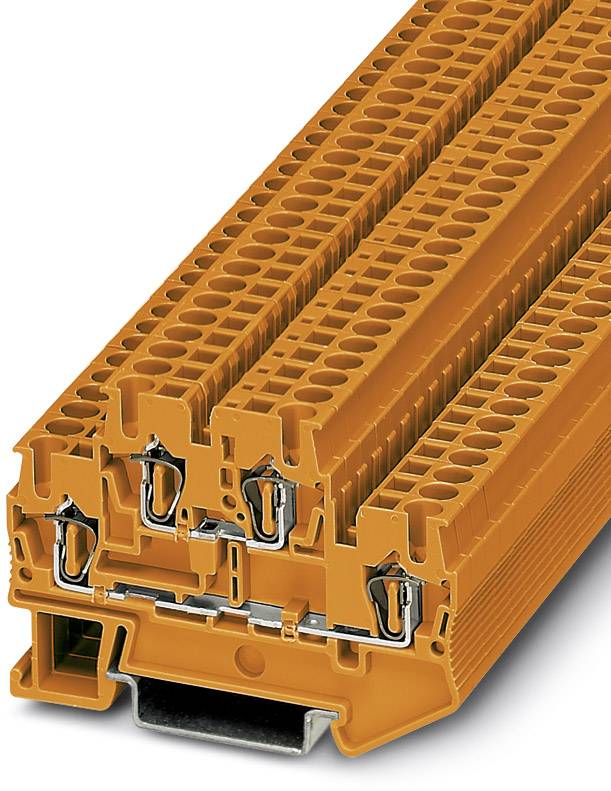

Feed-through terminal block STTB 2,5 OG 3035373 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Dual port spring-loaded terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
22 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.77 / piece)
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block STTB 2,5 OG
- STTB 2,5 OG
Technical specifications
- Product type
Dual port spring-loaded terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Orange
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
500 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3035373
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STTB 2,5 OG
- Dim
(L x W x H) 67.5 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
67.5 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 586924 Feed-through terminal block STTB 2,5 OG 3035373 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586924 Feed-through terminal block STTB 2,5 OG 3035373 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Connection type: Spring-cage connection, Width: 5.2 mm, Color: orange, Mounting type: NS 35/7,5, NS 35/15
