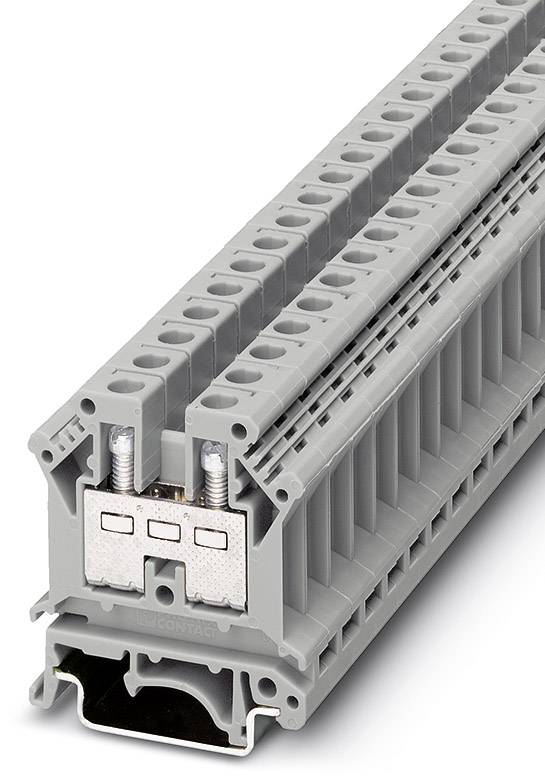

Feed-through terminal block UK 10 3005015 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.46 / piece)
€ 273.11
plus VAT.
14-day return policy included
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3005015
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 10
- Dim
(L x W x H) 42.5 x 8.2 x 47 mm
- Width
8.2 mm
- Height
47 mm
- Length
42.5 mm
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565226 Feed-through terminal block UK 10 3005015 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565226 Feed-through terminal block UK 10 3005015 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 8.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
