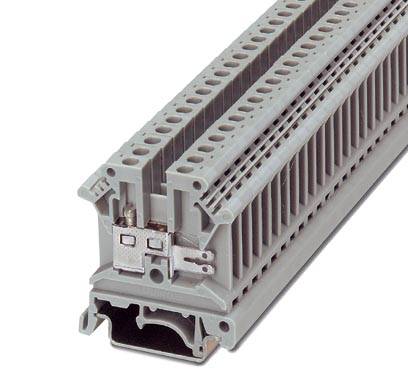

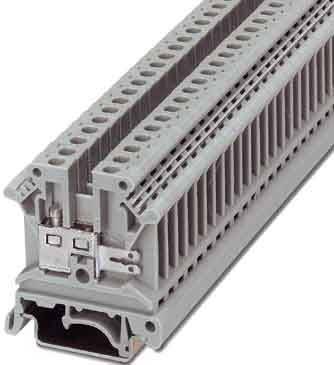

Feed-through terminal block UK 4-FSR(2-2,8-0,8) 3019014 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 3.36 / piece)
€
Highlights & Details
Feed-through terminal block UK 4-FSR(2-2,8-0,8)
- UK 4-FSR(2-2,8-0,8)
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3019014
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 4-FSR(2-2,8-0,8)
- Dim
(L x W x H) 42.5 x 6.2 x 47 mm
- Width
6.2 mm
- Height
47 mm
- Length
42.5 mm
- RoHS-compliant
- Contamination level
3
- Flammability rating
V2
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565258 Feed-through terminal block UK 4-FSR(2-2,8-0,8) 3019014 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565258 Feed-through terminal block UK 4-FSR(2-2,8-0,8) 3019014 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Slip-on connection, Cross section: 0.2 mm² - 4 mm², AWG :24- 12, Width: 6.2 mm, Color: gray, Mounting: NS 35/7,5, NS 35/15, NS 32
