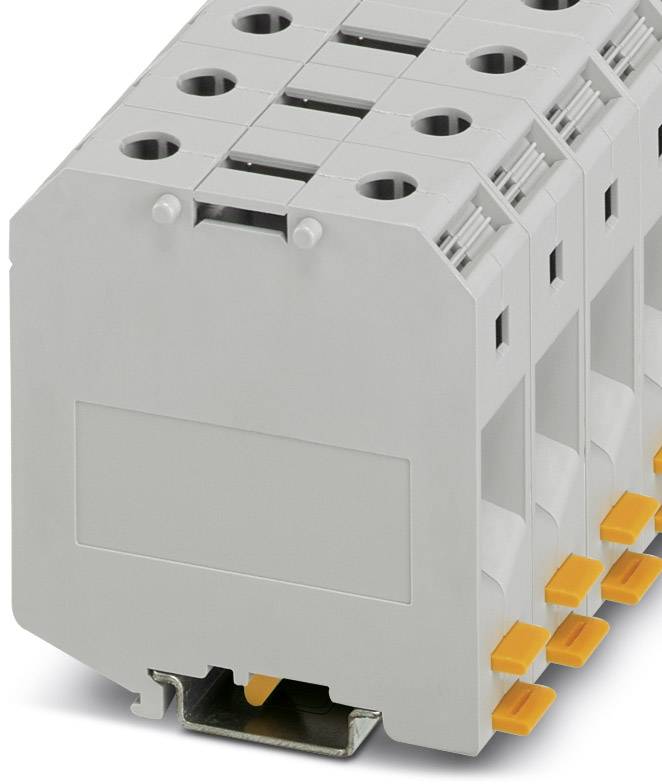

Feed-through terminal block UKH 50-IB 3009053 Phoenix Contact
EAN:
Part number:
Item no:
Product type
High power terminal
Connection
Screws
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
70 mm²
Nominal current - rounded value
150 A
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 13.02 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
High power terminal
- Connection
Screws
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
70 mm²
- AWG (min.)
6
- AWG max.
2
- Clamp width
20 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
150 A
- Nominal current - rounded value
150 A
- Nominal voltage
1000 V
- Stripping length (max.)
24 mm
- Manufacturer part #
3009053
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
UKH 50-IB
- Dim
(L x W x H) 70.5 x 20 x 83.5 mm
- Width
20 mm
- Height
83.5 mm
- Length
70.5 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 584147 Feed-through terminal block UKH 50-IB 3009053 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 584147 Feed-through terminal block UKH 50-IB 3009053 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Number of positions: 1, Cross section: 16 mm² - 50 mm², AWG: 6 - 1/0, Width: 20 mm, Color: gray, Mounting type: NS 35/15, NS 32, NS 35/15-2,3
