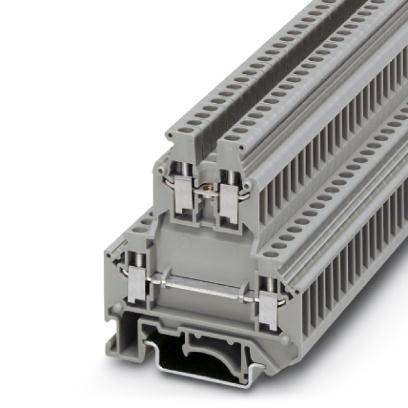

Feed-through terminal block UKK 3 2770011 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Dual port terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.95 / piece)
€ 197.47
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block UKK 3
- UKK 3
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
8 mm
- Manufacturer part #
2770011
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UKK 3
- Dim
(L x W x H) 56 x 5.2 x 62 mm
- Width
5.2 mm
- Height
62 mm
- Length
56 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565158 Feed-through terminal block UKK 3 2770011 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565158 Feed-through terminal block UKK 3 2770011 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Connection type: Screw connection, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
