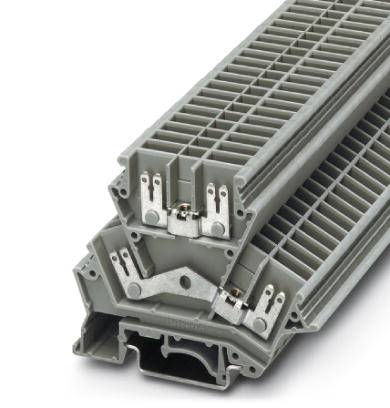

Feed-through terminal block UKK 4-FS/FS 2771133 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Type C CEE 7/16 plug 2.8 mm
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.78 / piece)
€ 189.07
plus VAT.
Only 6 Set(s) available
Technical specifications
- Product type
Serial continuity
- Connection
Type C CEE 7/16 plug 2.8 mm
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
8
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
2771133
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UKK 4-FS/FS
- Dim
(L x W x H) 72 x 6.2 x 59 mm
- Width
6.2 mm
- Height
59 mm
- Length
72 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716878 Feed-through terminal block UKK 4-FS/FS 2771133 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716878 Feed-through terminal block UKK 4-FS/FS 2771133 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.5 mm² - 6 mm², AWG: 20 - 10, Connection type: Slip-on connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
