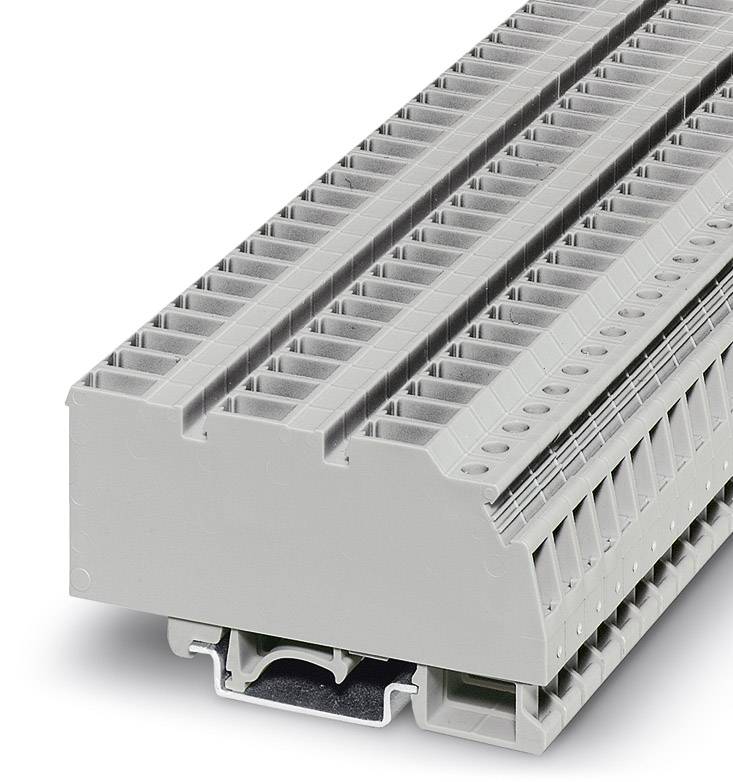

Image similar

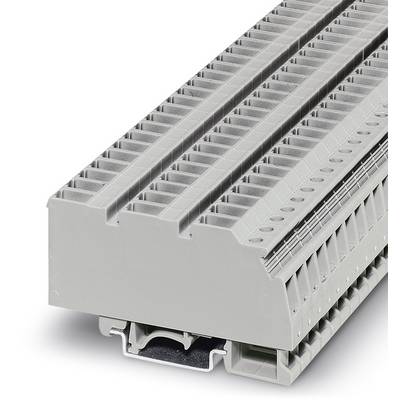

Image similar
Feed-through terminal block UPCV3K 4-G-7,62 1838381 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.03 / piece)
€ 201.67
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
7.62 mm
- No. of rows
1
- Pins per row
1
- Number of pins
4
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
1838381
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UPCV3K 4-G-7,62
- Dim
(L x W x H) 74.50 x 7.62 x 74.4 mm
- Width
7.62 mm
- Height
74.4 mm
- Length
74.50 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565321 Feed-through terminal block UPCV3K 4-G-7,62 1838381 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565321 Feed-through terminal block UPCV3K 4-G-7,62 1838381 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw/plug-in connection, Number of positions: 1, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 7.62 mm, Color: gray, Mounting type: NS 32, NS 35/7,5, NS 35/15
