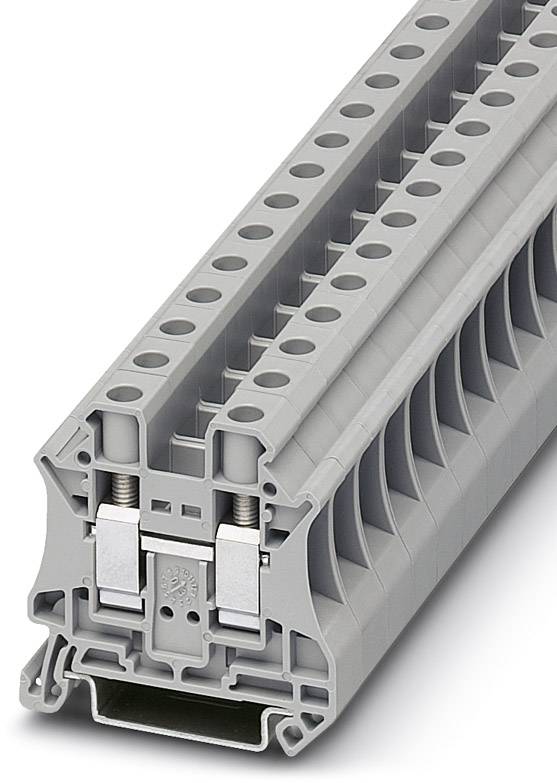

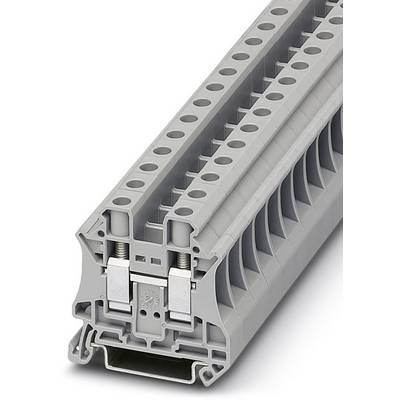

Feed-through terminal block UT 10 SL 3064247 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.10 / piece)
€ 147.06
-29 %
€ 105.03
plus VAT.
Only 5 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1000 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3064247
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 10 SL
- Dim
(L x W x H) 47.7 x 10.2 x 46.9 mm
- Width
10.2 mm
- Height
46.9 mm
- Length
47.7 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566294 Feed-through terminal block UT 10 SL 3064247 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566294 Feed-through terminal block UT 10 SL 3064247 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Height: 46.9 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
