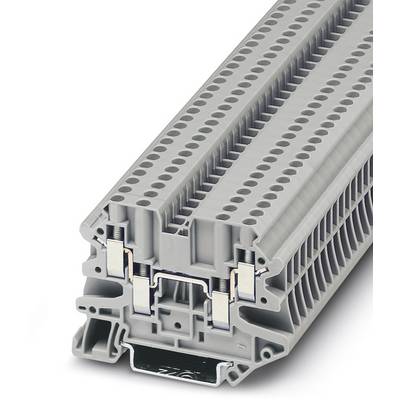

Feed-through terminal block UT 2,5-QUATTRO 3044542 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.18 / piece)
€ 109.24
plus VAT.
Only 1 Set(s) available
Highlights & Details
Feed-through terminal block UT 2,5-QUATTRO
- UT 2,5-QUATTRO
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3044542
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 2,5-QUATTRO
- Dim
(L x W x H) 65.4 x 5.2 x 46.9 mm
- Width
5.2 mm
- Height
46.9 mm
- Length
65.4 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 588398 Feed-through terminal block UT 2,5-QUATTRO 3044542 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 588398 Feed-through terminal block UT 2,5-QUATTRO 3044542 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
