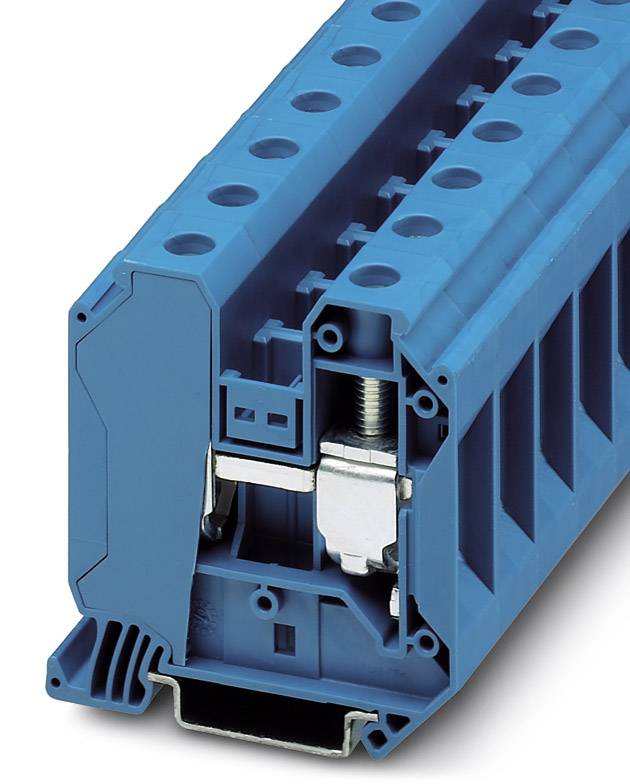

Feed-through terminal block UT 35 BU 3044238 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (max.)
50 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.96 / piece)
€ 247.90
plus VAT.
14-day return policy included
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
50 mm²
- AWG (min.)
16
- AWG max.
1
- Clamp width
16 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Stripping length (max.)
18 mm
- Manufacturer part #
3044238
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 35 BU
- Dim
(L x W x H) 61.2 x 16 x 65.1 mm
- Width
16 mm
- Height
65.1 mm
- Length
61.2 mm
- Contamination level
3
- Weight
0.0610 kg
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565881 Feed-through terminal block UT 35 BU 3044238 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565881 Feed-through terminal block UT 35 BU 3044238 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 50 mm², AWG: 16 - 1/0, Width: 16 mm, Height: 65.1 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
