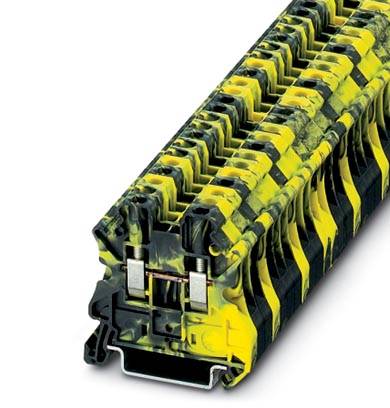

Feed-through terminal block UT 4-FE 3047617 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Technical specifications
- Product type
Serial continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Black
Yellow
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3047617
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 4 BKYE-FE
- Dim
(L x W x H) 46.9 x 6.2 x 47.5 mm
- Width
6.2 mm
- Height
47.5 mm
- Length
46.9 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566160 Feed-through terminal block UT 4-FE 3047617 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566160 Feed-through terminal block UT 4-FE 3047617 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Number of positions: 1, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Width: 6.2 mm, Color: black/yellow, Mounting type: NS 35/7,5, NS 35/15
