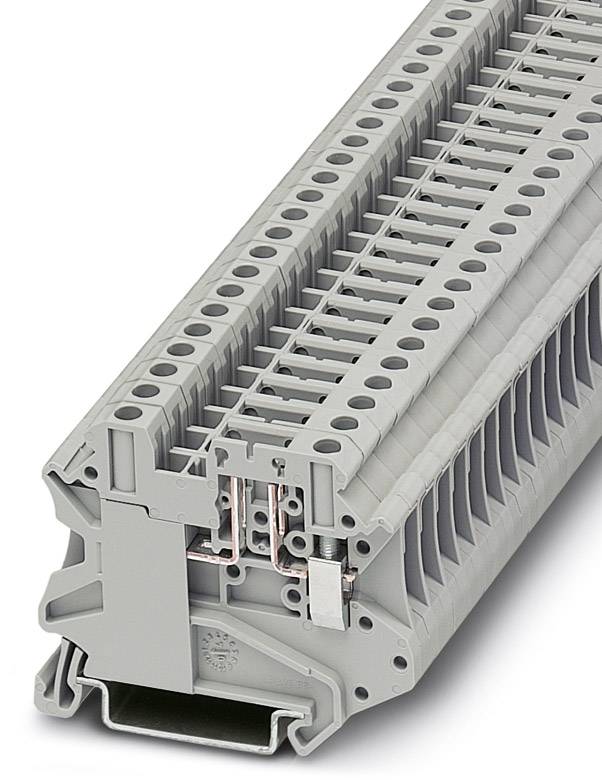

Feed-through terminal block UT 4-TG-P/P 3046168 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.44 / piece)
€ 121.84
plus VAT.
Highlights & Details
Feed-through terminal block UT 4-TG-P/P
- UT 4-TG-P/P
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3046168
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 4-TG-P/P
- Dim
(L x W x H) 57.8 x 6.2 x 47.5 mm
- Width
6.2 mm
- Height
47.5 mm
- Length
57.8 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716802 Feed-through terminal block UT 4-TG-P/P 3046168 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716802 Feed-through terminal block UT 4-TG-P/P 3046168 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Nominal current: 20 A, Nominal voltage: 500 V, Length: 57.8 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
