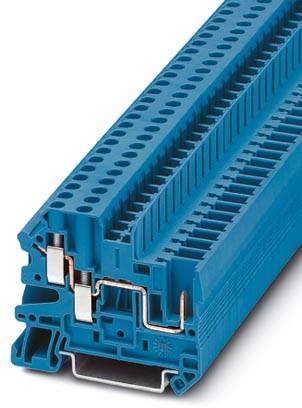

Feed-through terminal block UT 4-TWIN/ 1P BU 3060270 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.93 / piece)
€ 96.63
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3060270
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 4-TWIN/ 1P BU
- Dim
(L x W x H) 55.7 x 6.2 x 47.5 mm
- Width
6.2 mm
- Height
47.5 mm
- Length
55.7 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566141 Feed-through terminal block UT 4-TWIN/ 1P BU 3060270 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566141 Feed-through terminal block UT 4-TWIN/ 1P BU 3060270 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw/plug-in connection, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
