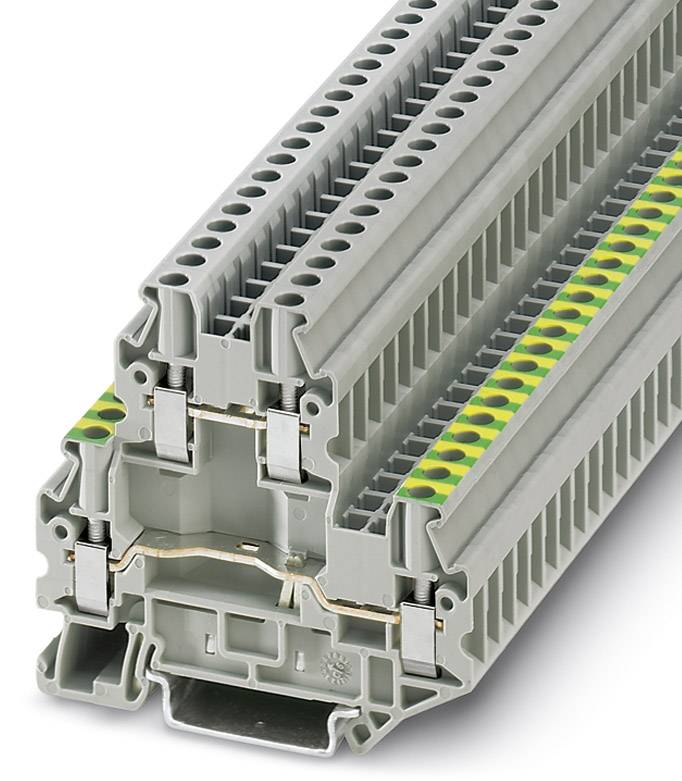

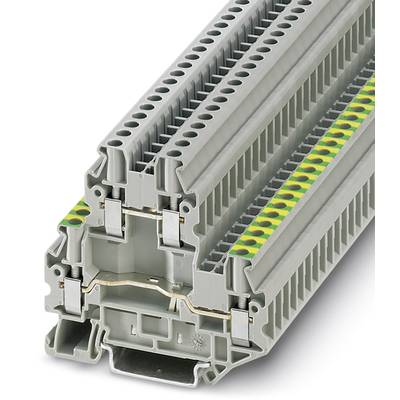

Feed-through terminal block UTTB 4-PE/L 3044746 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.96 / piece)
€ 247.90
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block UTTB 4-PE/L
- UTTB 4-PE/L
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3044746
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UTTB 4-PE/L
- Dim
(L x W x H) 69.9 x 6.2 x 65 mm
- Width
6.2 mm
- Height
65 mm
- Length
69.9 mm
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565900 Feed-through terminal block UTTB 4-PE/L 3044746 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565900 Feed-through terminal block UTTB 4-PE/L 3044746 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Connection type: Screw connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
