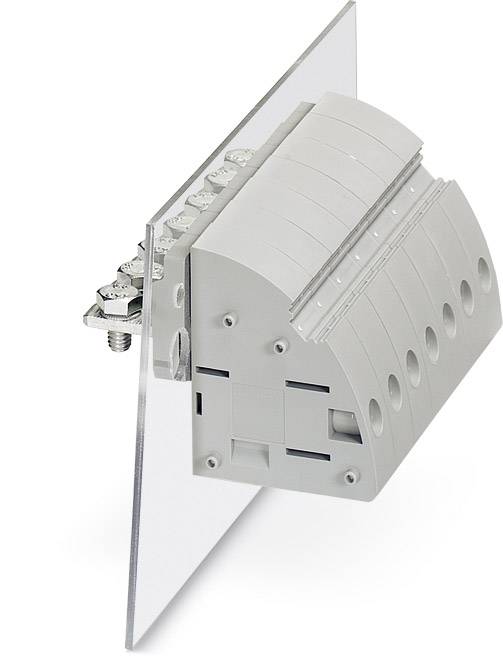

Feed-through terminal block UWV 25-POT/S 3073571 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feedthrough terminal
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
35 mm²
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 4.87 / piece)
€ 121.84
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Feedthrough terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
10
- AWG max.
4
- Clamp width
15.1 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
800 V
- Stripping length (max.)
19 mm
- Manufacturer part #
3073571
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
UWV 25-POT/S
- Width
15.1 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715943 Feed-through terminal block UWV 25-POT/S 3073571 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715943 Feed-through terminal block UWV 25-POT/S 3073571 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cable lug connection, Load current : 125 A, Cross section: 6 mm² - 35 mm², AWG 8 - 3, Connection direction of the conductor to plug-in direction: 90 °, Width: 15.1 mm, Color: gray
Hints
Special order, no right of withdrawal.
