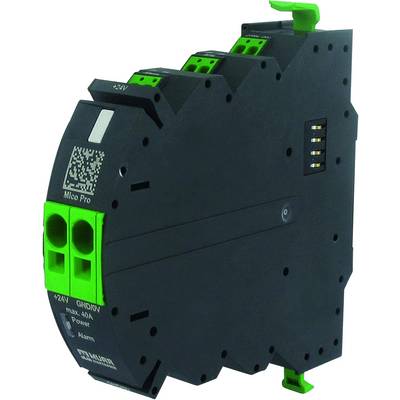

Feeder module 9 - 30 V DC Murrelektronik 9000-41190-0000000 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Feeder module
Max. operating voltage
30 V DC
Type
9000-41190-0000000
Operating voltage
12 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: 61961schnappbar on mounting rail TH35
- Bridge concept: Bridge set (max. 40 A)
- INPUT VOLTAGE (CTRL): 9...30 V DC
- INPUT VOLTAGE (ON): 9...30 V DC
- Pulse length (CTRL): Off "high" 40/400 ms, ON "high" 20/200 ms
- Pulse length (ON): "high" 120 ms
- Parallel operation/series operation: -/selectivity in 2 levels
- AWG rigid min.: 20
- AWG rigid max.: 4
- Group message output: Max. 30 V AC/DC
- Shock load: 1/2 sin 40 g, 11 ms
- Total current: Max. 40 A
- Packaging type
Piece
- Product type
Feeder module
- Type
9000-41190-0000000
- Operating voltage
12 V DC
24 V DC
- Min. operating voltage
9 V DC
- Max. operating voltage
30 V DC
- Operating voltage
9 - 30 V DC
- Connection
Spring-loaded terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
24 mm
- Height
130 mm
- Depth
114 mm
- Dim
(L x W x H) 130 x 24 x 130 mm
- Content
1 pc(s)
- AWG max.
4
- AWG (min.)
20
- Length
130 mm
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2311949 Feeder module 9 - 30 V DC Murrelektronik 9000-41190-0000000 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2311949 Feeder module 9 - 30 V DC Murrelektronik 9000-41190-0000000 Piece 1 pc(s)
