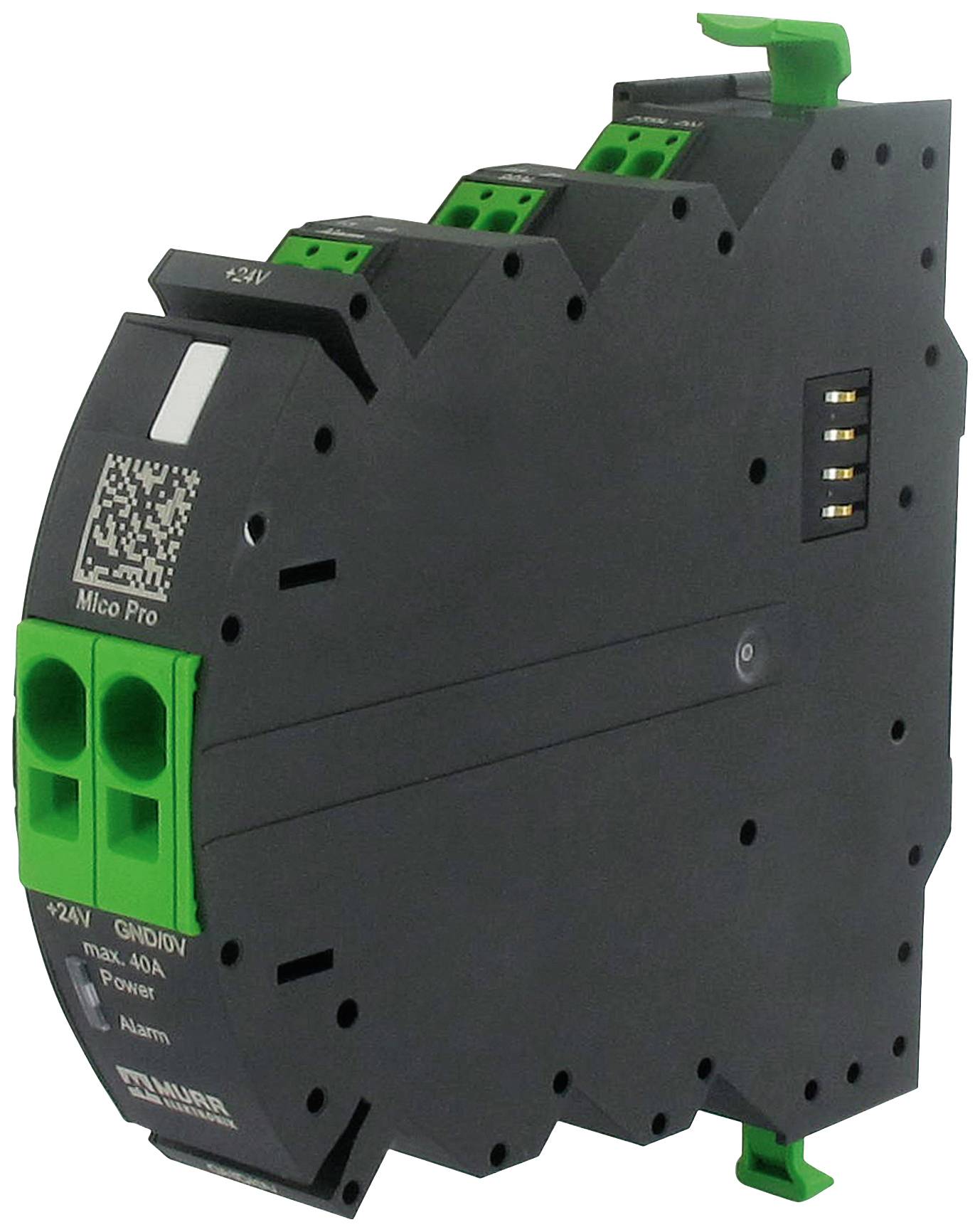

Feeder module 9 - 30 V DC Murrelektronik 9000-41190-0000001 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder module
Functions
Undervoltage and overvoltage
Max. operating voltage
30 V DC
Switching voltage (max.)
30 V DC/AC
Type
9000-41190-0000001
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: 61961schnappbar on mounting rail TH35
- Bridge concept: Bridge set (max. 40 A)
- INPUT VOLTAGE (CTRL): 9...30 V DC
- INPUT VOLTAGE (ON): 9...30 V DC
- Pulse length (CTRL): Off "high" 40/400 ms, ON "high" 20/200 ms
- Pulse length (ON): "high" 120 ms
- Parallel operation/series operation: -/selectivity in 2 levels
- AWG rigid min.: 20
- AWG rigid max.: 4
- Group message output: Max. 30 V AC/DC
- Shock load: 1/2 sin 30 g, 11 ms
- Total current: Max. 40 A
- Product type
Feeder module
- Type
9000-41190-0000001
- Functions
Undervoltage and overvoltage
- Operating voltage
12 V DC
24 V DC
- Min. operating voltage
9 V DC
- Max. operating voltage
30 V DC
- Operating voltage
9 - 30 V DC
- Amperage adjustment range (max.)
40 A
- Adjustment range (amperage)
40 A (max)
- Switching voltage (max.)
30 V DC/AC
- Connection
Spring-loaded terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
24 mm
- Height
130 mm
- Depth
114 mm
- Dim
(W x H x D) 24 x 130 x 114 mm
- Content
1 pc(s)
- AWG max.
4
- AWG (min.)
20
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2311950 Feeder module 9 - 30 V DC Murrelektronik 9000-41190-0000001 1 pc(s)
