Fein ASCM 18-4 QM AS 71161567000 Cordless drill 18 V 5.0 Ah Li-ion incl. spare battery, incl. charger, incl. case
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Fein ASCM 18-4 QM AS 71161567000 Cordless drill 18 V 5.0 Ah Li-ion incl. spare battery, incl. charger, incl. case
- 18 V/5.0 Ah Li-ion battery
- Torque (max.) (details) 130 Nm
- Torque levels 15+1
Technical specifications
- Product type
Cordless drill
- Voltage
18 V
- Capacity (mAh, Ah)
5.0 Ah
- Technology
Li-ion
- No. of power packs included
2
- Idle speed (details)
430, 850, 2000, 4000 U/min
- Max. torque
130 Nm
- Torque levels
15+1
- Tool holder
QuickIN
- Drill chuck clamping range
1,5 - 13 mm
- Features
incl. spare battery
incl. charger
incl. case
- Transmission type
4-speed
- Weight
1.3 kg
- Weight, information
without rechargeable battery
- Power supply (LOV)
rechargeable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3220161 Fein ASCM 18-4 QM AS 71161567000 Cordless drill 18 V 5.0 Ah Li-ion incl. spare battery, incl. charger, incl. case
User & Safety Instructions
User & Safety Instructions 3220161 Fein ASCM 18-4 QM AS 71161567000 Cordless drill 18 V 5.0 Ah Li-ion incl. spare battery, incl. charger, incl. case
Warranty Terms
Warranty Terms 3220161 Fein ASCM 18-4 QM AS 71161567000 Cordless drill 18 V 5.0 Ah Li-ion incl. spare battery, incl. charger, incl. case
Description
Features
- 4-speed full metal gear With speeds up to 4000 rpm for optimum cutting speeds in metal for each hole from 1.5 to 80 mm.
- The largest application variety with the FEIN QuickIN-system for multi-functional use around drilling, core-drilling, tapping, sinking and screwing.|Quick adapters can be changed without tools between the applications in metal and wood with just one machine.
- Very safe working. Kickback monitoring stops the machine
- More control through removable additional handle
- |The brushless, powerful FEIN PowerDrive motor, with up to 30% higher efficiency, enables a longer service life
- High torque up to a maximum of 130 Nm
- QuickIN full metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces
- Electronic torque setting (15+1)
- Intuitive control panel with dimmable LED for perfect lighting of the working place depending upon the material
- Ergonomic and flexible use with side-mounted bit and belt holder
- Screwed 10 x 400 mm screws without pre-drilling
- AMPShare interface enables 1 700 screw connections (5 x 40 mm in wood) per battery charge (GBA 18 V 5 Ah)
- Extensive user protection through restart protection, electronic overload protection and brake
- The innovative reset function allows wood screws to be tightened at reduced speed for perfect results
- Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries
- Uncompromising performance for taps up to M14 and drilling with HM hole saws up to 80 mm
- This text is machine translated.

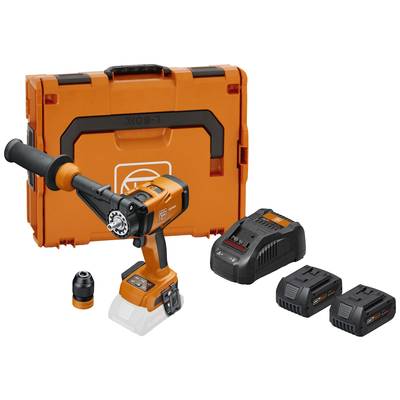

Scope of delivery
- 4-gear cordless screw driller ASCM 18-4 QM AS Set 5 Ah
- 2x LiIon battery GBA 18 V 5.0 Ah AS
- 1x quick charger GAL 1880 CV AS
- 1x plastic tool case (L-BOXX 136)
- Telescopic handle
- Bit garage
- Belt clip
- QuickIn drill chuck (120 Nm)
