Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 1x 5Ah 71321063000 Operating voltage 18 V Battery voltage 18 V
EAN:
Part number:
Item no:
Number
Total (€ 668.07 / piece)
€ 668.07
plus VAT.
Highlights & Details
ALK 18 1.3 CSE AS set 1x 5 Ah
- Battery nibbler up to 1.3 mm
- ALK 18 1.3 CSE AS set 1x 5 Ah
- Compact and curved knibbler for roof and facade construction

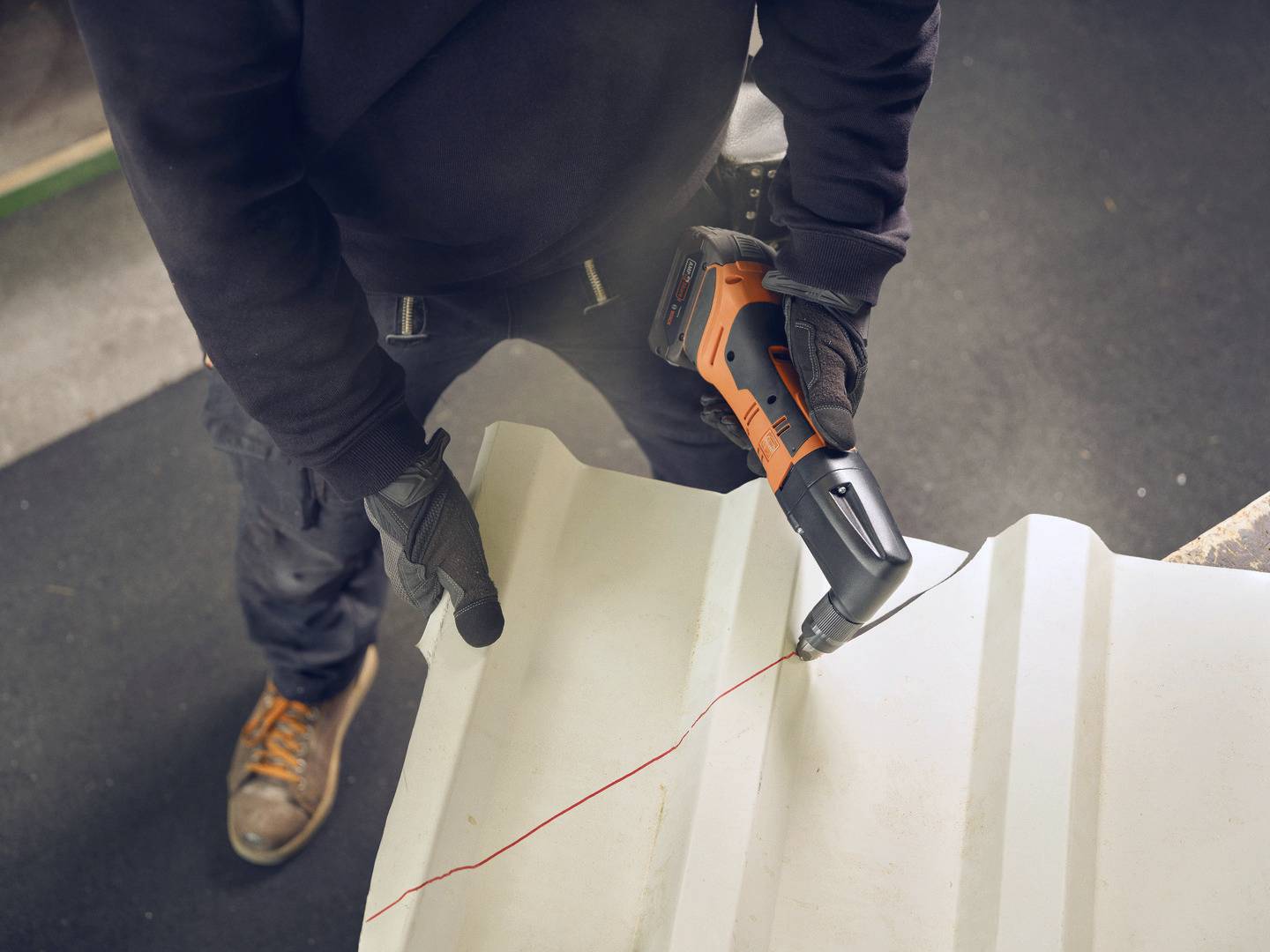

- Precise cuts in corrugated sheet up to 1.3 mm
- Includes charger GAL 1880 CV AS, 1x LiIon battery GBA 18V 5.0Ah AS, additional set of stamps and matrices, permanent marker, masking tape and meter stick.
Technical specifications
- Battery voltage: 18 V
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface 18 V AMPShare
- Weight without rechargeable battery: 1.68 kg
- Stroke number 1000/1600 1/min
- Immersion-Ø with Matrix 19 mm
- Radius of the smallest curve (inside / outside): 15 / 20 mm
- Weight
1.68 kg
- Battery voltage
18 V
- Cutting speed (max.)
1.9 m/min
- Cutting width (max.)
4 mm
- Max. material thickness (aluminium strength: 250 N/mm²)
2 mm
- Max. material thickness (steel strength: 400 N/mm²)
1.3 mm
- Max. material thickness (steel strength: 600 N/mm²)
0.8 mm
- Max. material thickness (steel strength: 800 N/mm²)
0.6 mm
- Number of strokes (max.)
1600 /min
- Operating voltage
18 V
- Product type
Cordless nibbler
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323897 Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 1x 5Ah 71321063000 Operating voltage 18 V Battery voltage 18 V
Description
Battery nibbler up to 1.3 mm|ABLK 18 1.3 CSE AS Set 1x 5 Ah|Compact and curved knibbler for roof and facade construction. Precise cuts in corrugated sheet up to 1.3 mm. Includes charger GAL 1880 CV AS, 1x LiIon battery GBA 18V 5.0Ah AS, additional set of stamps and matrices, permanent marker, masking tape and meter stick.
This text is machine translated.
This text is machine translated.
Features
- 66 m cutting capacity (in 0.8 mm plate) with one battery charge (GBA 5 Ah).
- In 45-degree increments through 360 ° variable adjustable cutting tool-rotating direction through matrix support
- Optimum handiness through extremely slim gear head.
- 1.9 m/min cutting speed for outstanding work progress.
- Variable cutting speed through electronically adjustable stroke rate.
- Short-term overlapping range up to 2.6 mm.
- Rotating seal for up to 30% longer service life.
- Proven MultiMaster motor with extraordinary power and stability.
- QuickIN quick change system of die and stamp.
- Low operating costs The stamp and die are exchanged independently of each other.
- Compatible with AMPShare-/ Bosch Professional 18 V batteries.
- Maximum work progress with AMPShare 18 V batteries: COOLPACK 1.0 technology provides a longer battery life compared to batteries without COOLPACK technology and thus enables longer operating times. ECP protects the battery against overloading, overheating and deep discharge.
- Best equipped for every use. Mobile working with the L-BOXX system.
- The latest cell technology and intelligent battery management ensure 87% more power than conventional batteries.

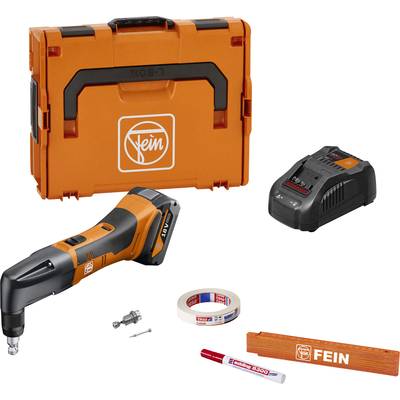

Scope of delivery
- 1 Matrix for corrugated sheet (30109169009) assembled
- 1 stamp (63602050000) fitted
- 1 Punch and die set (30109169030)
- 1 permanent marker (32133037000)
- 1 Painters's tape (32133038000)
- 1 Meter stick (18750283000)
- 1 Li-ion GBA 18V 5.0 Ah AS (92604346020)
- 1 CHARGER GAL 1880 CV AS (92604335010)
- 1 plastic tool case (L-BOXX 136)
