Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 2x 5Ah 71321064000 Operating voltage 18 V Battery voltage 18 V
EAN:
Part number:
Item no:
Number
Total (€ 747.06 / piece)
€ 747.06
plus VAT.
14-day return policy included
Highlights & Details
ALK 18 1.3 CSE AS set 2x 5 Ah
- Battery nibbler up to 1.3 mm
- ALK 18 1.3 CSE AS set 2x 5 Ah
- Compact and curved knibbler for roof and facade construction

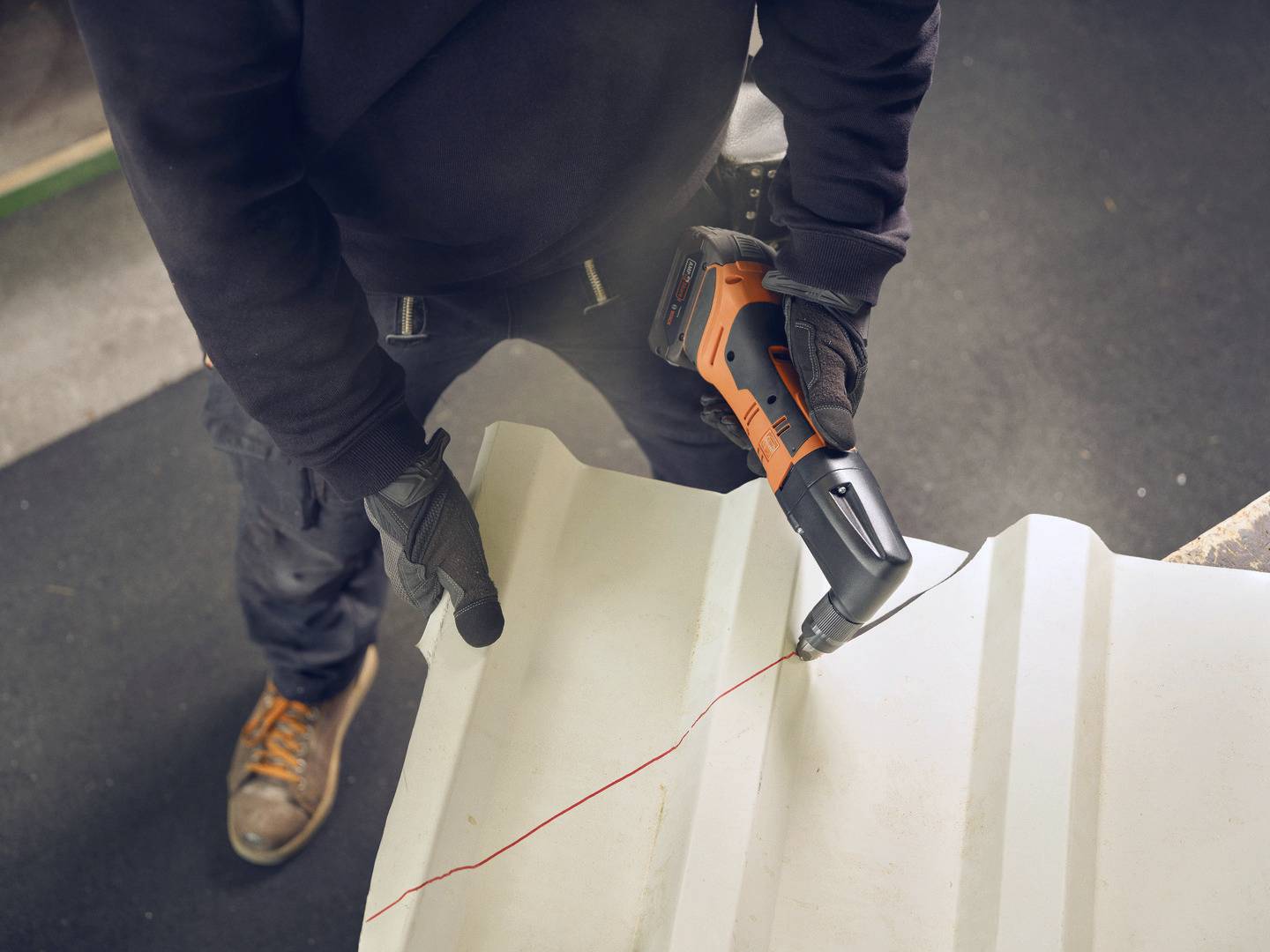

- Precise cuts in corrugated sheet up to 1.3 mm
- Includes charger GAL 1880 CV AS, 2x LiIon battery GBA 18 V 5.0Ah AS, additional set of stamps and matrices, permanent marker, masking tape and meter stick.
Technical specifications
- Battery voltage: 18 V
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface 18 V AMPShare
- Weight without rechargeable battery: 1.68 kg
- Stroke number 1000/1600 1/min
- Cutting track width 4 mm
- Immersion-Ø with Matrix 19 mm
- Radius of the smallest curve (inside / outside): 15 / 20 mm
- Product type
Cordless nibbler
- Operating voltage
18 V
- Battery voltage
18 V
- Weight
1.68 kg
- Battery capacity
5 Ah
- Number of strokes (max.)
1600 /min
- Max. material thickness (aluminium strength: 250 N/mm²)
2 mm
- Max. material thickness (steel strength: 400 N/mm²)
1.3 mm
- Max. material thickness (steel strength: 600 N/mm²)
0.8 mm
- Max. material thickness (steel strength: 800 N/mm²)
0.6 mm
- Cutting speed (max.)
1.9 m/min
- Cutting width (max.)
4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323898 Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 2x 5Ah 71321064000 Operating voltage 18 V Battery voltage 18 V
Description
Battery nibbler up to 1.3 mm|ALK 18 1.3 CSE AS set 2x 5 Ah|Compact and curved knibbler for roof and facade construction. Precise cuts in corrugated sheet up to 1.3 mm. Includes charger GAL 1880 CV AS, 2x LiIon battery GBA 18 V 5.0Ah AS, additional set of stamps and matrices, permanent marker, masking tape and meter stick.
This text is machine translated.
This text is machine translated.
Features
- 66 m cutting capacity (in 0.8 mm plate) with one battery charge (GBA 5 Ah).
- In 45-degree increments through 360 ° variable adjustable cutting tool-rotating direction through matrix support
- Optimum handiness through extremely slim gear head.
- 1.9 m/min cutting speed for outstanding work progress.
- Variable cutting speed through electronically adjustable stroke rate.
- Short-term overlapping range up to 2.6 mm.
- Rotating seal for up to 30% longer service life.
- Proven MultiMaster motor with extraordinary power and stability.
- QuickIN quick change system of die and stamp.
- Low operating costs The stamp and die are exchanged independently of each other.
- Compatible with AMPShare-/ Bosch Professional 18 V batteries.
- Maximum work progress with AMPShare 18 V batteries: COOLPACK 1.0 technology provides a longer battery life compared to batteries without COOLPACK technology and thus enables longer operating times. ECP protects the battery against overloading, overheating and deep discharge.
- Best equipped for every use. Mobile working with the L-BOXX system.
- The latest cell technology and intelligent battery management ensure 87% more power than conventional batteries.
Scope of delivery
- 1 Matrix for corrugated sheet (30109169009) assembled
- 1 stamp (63602050000) fitted
- 1 Punch and die set (30109169030)
- 1 permanent marker (32133037000)
- 1 Painters's tape (32133038000)
- 1 Meter stick (18750283000)
- 2 Li-ion GBA 18V 5.0 Ah AS (92604346020)
- 1 CHARGER GAL 1880 CV AS (92604335010)
- 1 plastic tool case (L-BOXX 136)
