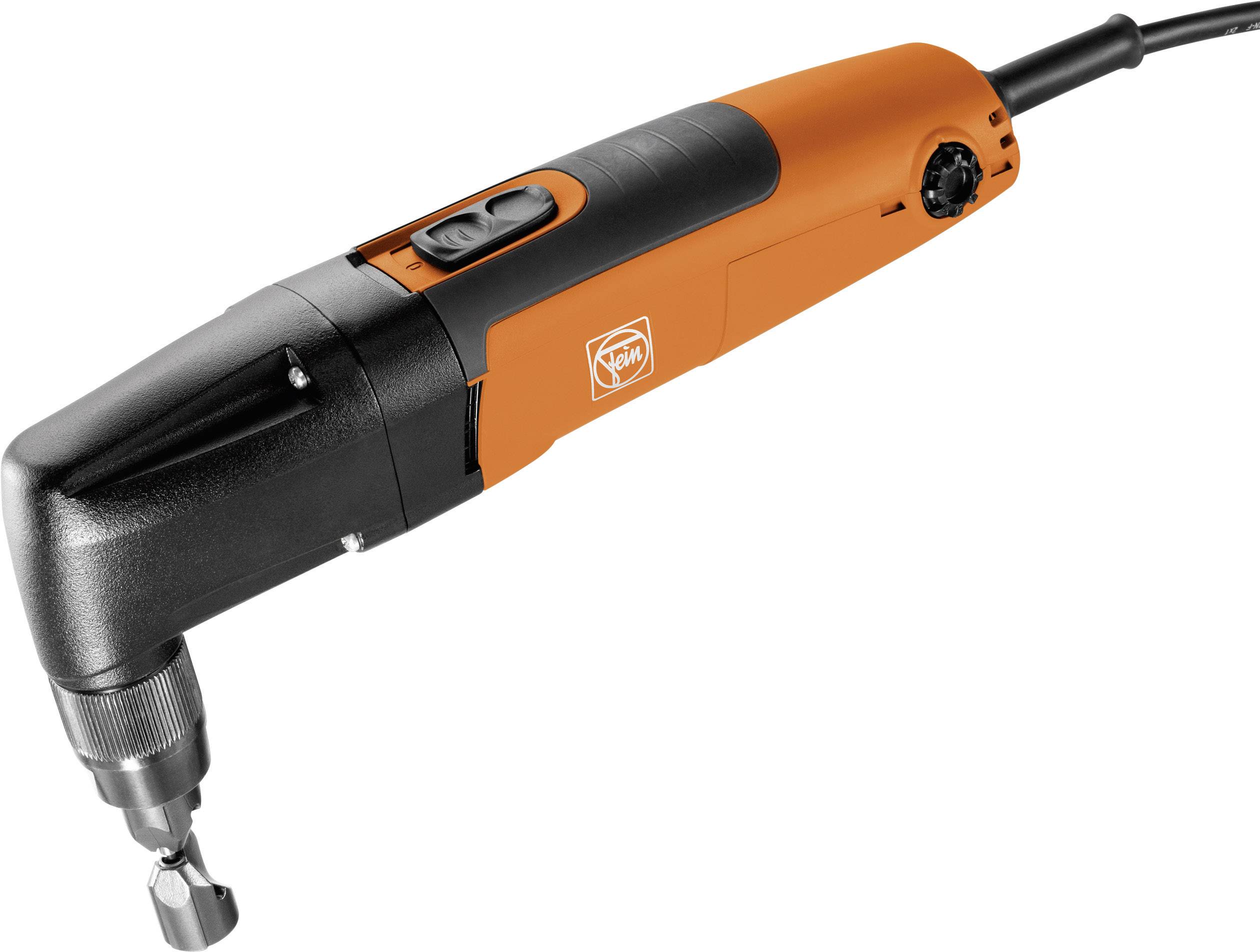

Fein Nibbler BLK 1.6 E 72323860000 Operating voltage 230 V Power 210 W
EAN:
Part number:
Item no:
Number
Total (€ 654.62 / piece)
€ 654.62
plus VAT.
Only 1 Piece(s) available
Highlights & Details
SHEET NIBBLER BLK 1.6
- 360° variable adjustable cutting direction
- sheet thicknesses up to 1.6 mm
- stainless steel up to 0.7 mm
Technical specifications
- Cuttable material thickness: (Steel up to 400 N/mm ² /Steel up to 600 N/mm ² /Steel up to 800 N/mm ² /NE metals up to 250 N/mm ² /stainless steel) 1.6/1.0/0.7/2.5/0.7 mm
- Immersion Ø with die plate of 22 mm
- Cutting width 5 mm
- Radius of the smallest curve (inside/outside) 30/35 mm
- Dim
(L x W x H) 272 x 59 x 149 mm
- Weight
1.8 kg
- Cable length
5 m
- Height
149 mm
- Length
272 mm
- Width
59 mm
- Cutting speed (max.)
1.9 m/min
- Max. material thickness (steel strength: 400 N/mm²)
1.6 mm
- Max. material thickness (steel strength: 600 N/mm²)
1.0 mm
- Max. material thickness (steel strength: 800 N/mm²)
0.7 mm
- Number of strokes (max.)
1500 /min
- Operating voltage
230 V
350 W
210 W
- Processing speed
1.9 m/min
- Operating voltage
230 V/50 Hz
- Product type
Nibbler
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 816344 Fein Nibbler BLK 1.6 E 72323860000 Operating voltage 230 V Power 210 W
Warranty Terms
Warranty Terms 816344 Fein Nibbler BLK 1.6 E 72323860000 Operating voltage 230 V Power 210 W
Description
universal nibbler for sheet metals, sections, trapezoid and corrugated sheets.
Features
- Optimal handiness with a slimmer grip up to 20% by extreme slimnessGear driving head
- Rotatable In 45° position for 360° variable adjustable cutting direction without toolStencil carrier
- Quick IN-quick changing system
- High cutting speed
- Rotary stamp for increasing the durability up to 30%
- Splinter grille at the ventilation slot
Scope of delivery
- Die plate for trapezoid and corrugated sheet
- Die plate
- Stamp.
Hints
3-year manufacturer's warranty on registration within 6 weeks of purchase. More information can be found in the product's user manual. This text is machine translated.
