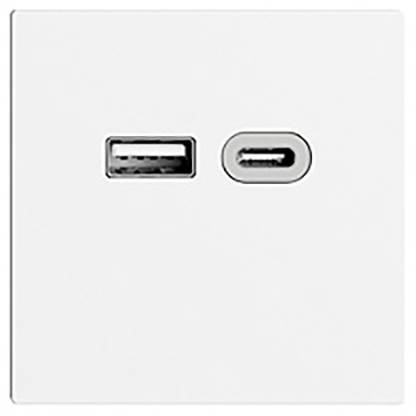

Feller 177562 USB charging socket incl. USB, incl. USB-C® IP20 White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
USB charging socket USB-A+C 18W insert+front PL. EdizioDue IP20 white
- Variably combinable color inserts
- Easy color conversion
Technical specifications
- Device type USB charging socket
- USB type A + USB type C attachment
- Function: With plug-in terminals, fuse
- Surface finish: Matt
- Number of slots: 2
- USB Output Single A-Port: Max. 12.0 V / 18.0 W
- USB Output Single C-Port: Max. 12.0 V / 18.0 W
- USB output total: Type A+C: 5.0 V / 17.0 W
- Mounting height 8 mm
- Weight: 90 g
- Product type
USB charging socket
- Light bulb features
incl. USB
incl. USB-C®
- Outlets
2
- Nominal voltage
230 V
- Nominal current
3.6 A
- Mounting type
Recess-mount
- Design type
Insert with front plate
- Mounting depth
41 mm
- Factory colour
White
IP20
- Dim
(L x W x H) 60 x 60 x 43 mm
- Length
60 mm
- Width
60 mm
- Height
43 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3735159 Feller 177562 USB charging socket incl. USB, incl. USB-C® IP20 White
User & Safety Instructions
User & Safety Instructions 3735159 Feller 177562 USB charging socket incl. USB, incl. USB-C® IP20 White
Description
Charger socket USB-A+C 18W / type: Use with front panel / voltage: 230V / output: 5-12VDC 18W / protocol: Type A: QC3.0/QC2.0, type C: PD2.0 QC3.0/QC2.0 / mounting depth: 41mm / color: White / IP protection type: IP20 / EdizioDue
EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.
This text is machine translated.
EDIZIODUE is far more than an attractive range of light switches and sockets. For the majority of system solutions it is also a superior design philosophy for all functions. EDIZIOdue uses the proven Feller apparatus technology. The basis is the color-neutral functional application, which allows the modular types flush-mounting, surface-mounting and installation. Subsequent color changes are quickly fulfilled, since EDIZIOdue covers can be easily replaced when the device is connected.
This text is machine translated.
Hints
For sale and use in Switzerland only!
