Fenix Light WF11E Torch Ex Zoning: 1, 2 200 lm 185 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Torch
- Ex Zoning
1
2
- Factory colour
Black
- Dim
(L x W x H) 167.5 x 24 x 49 mm
- ATEX no.
Ex ia IIC T4 Ga, Ex ia IIIC T130° Da IP66/IP67, II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T130° Da
- LEDs
1
- Weight
160 g
- Light duration (high)
10 h
- Light duration (low)
70 h
- Light duration (medium)
29.5 h
- Bulb type
LED (monochrome)
- Illumination range (high)
185 m
- Illumination range (low)
81 m
- Illumination range (medium)
141 m
- Luminous flux (range)
200 lm - 499.9 lm
- Luminous flux (high)
200 lm
- Luminous flux (low)
30 lm
- Luminous flux (medium)
100 lm
- Material
Plastic
- Width
24 mm
- Height
49 mm
- Length
167.5 mm
IP66/IP67
- Power supply (LOV)
battery-powered
- Waterproof
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3369216 Fenix Light WF11E Torch Ex Zoning: 1, 2 200 lm 185 m
Description

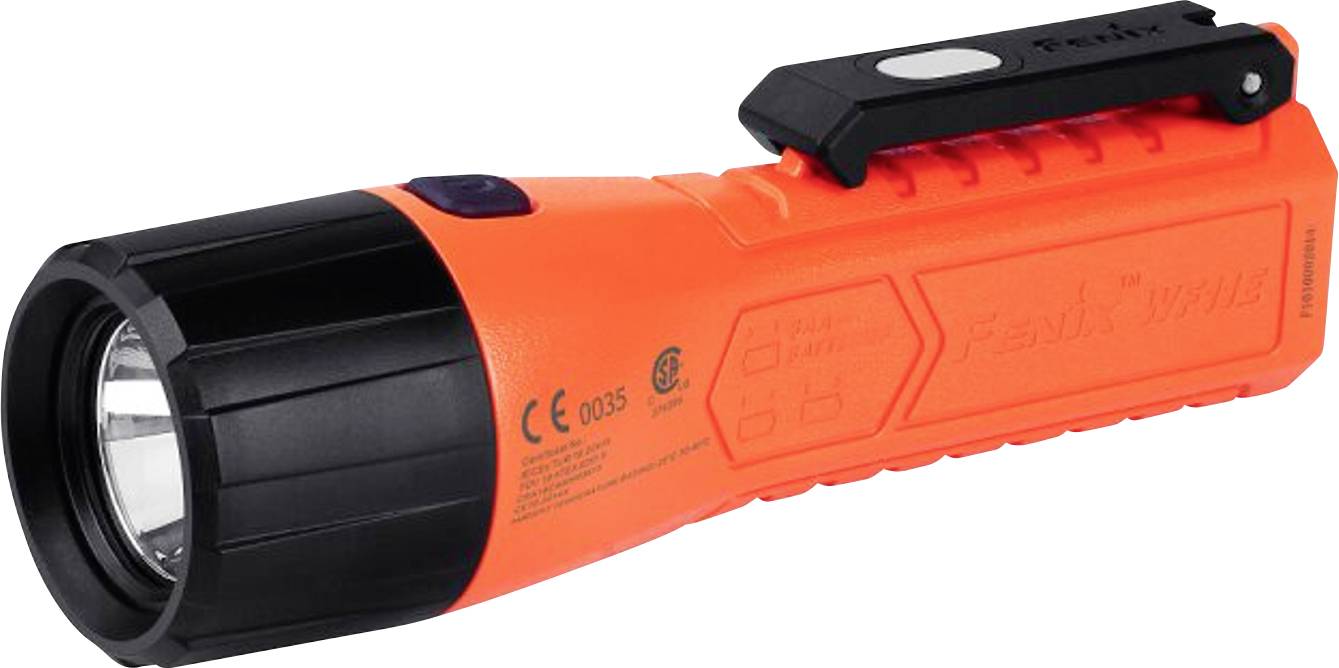

The Fenix WF11E is a ATEX ex-protected flashlight with magnet and belt clip. It provides a maximum brightness of 200 lumens.
This text is machine translated.
This text is machine translated.
Features
- Neutral white CREE XP-G2 LED with 50,000 hours durability
- Operates with 3 AA batteries according to the list below
- 3 brightness settings with max. 200 lumens
- Made from anti-static plastic
- Magnetic back & magnetic belt clip
- Physical reverse polarity protection against the wrong inserted batteries Range: Max. 185 meters
- Intensity: Max. 8512 Candela
- Shock resistance 1 meters
- Water-tightness:IP66 & IP67
- Ex ia IIC T4 Ga
- Ex ia IIIC T130° da IP66/IP67
- II 1G Ex ia IIC T4 Ga
- II 1D ex ia IIIC T130° Da IP66/IP67
- Class I Division 1 Groups A B C D T4
- Class II Division 1 Groups E F G
- Class III Division 1
Scope of delivery
- WF11E torch
- 3 × Energizer E91 AA alkaline batteries
- Replacement O-ring
- Wrist strap
- User manual
