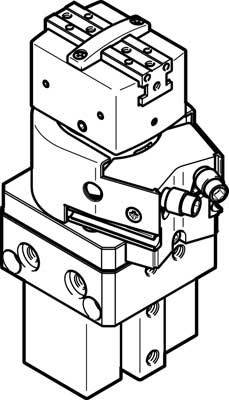

FESTO 1187962 HGDS-PP-20-P1-A-B Swivel gripper 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,617.65 / piece)
€ 1,617.65
plus VAT.
14-day return policy included
Highlights & Details
Swivel gripper HGDS-PP-20-P1-A-B
Technical specifications
- Size: 20
- Mounting type: with Schwalbenschwanz-Nut, either:, and centering sleeve with internal thread through hole and centering sleeve
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Type
1187962
- Product type
Swivel gripper
- Max. operating pressure
8 bar
- Manufacturer part #
1187962
- Operating pressure (min.)
3 bar
- Accuracy (+/-)
0.02 mm
- Connection
M5
- Material (details)
Aluminum wrought alloy
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2122143 FESTO 1187962 HGDS-PP-20-P1-A-B Swivel gripper 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2122143 FESTO 1187962 HGDS-PP-20-P1-A-B Swivel gripper 1 pc(s)
Description
Swivel gripping unit HGDS-PP-20-P1-A-B with elastic damping and fixed stop. Size = 20, setting range swivel angle = 0 - 210 deg, Hub per jaws = 7 mm, Max. Jaws angle game ax, ay = 0.1 deg, Max. Jaws Game Sz = 0.02 mm
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
