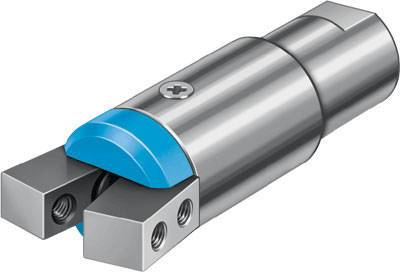

FESTO 185695 HGWM-08-EO-G8 Angled gripper Enclosure material: Steel (stainless) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- No. of jaws: 2
- Size: 8
- Fastening method: Clamped
- Operating pressure: 2 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Spring return torque 0.5 Ncm
- Operation: Single-acting
- Unassigned
- Close total gripping torque at 6 bar: 22 Ncm
- Gripper function: Angle
- Constructive structure: Inclined plane
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Max. Working frequency gripper: 4 Hz
- Max. Gripping jaw play Sz: 0.03 mm
- Max. Jaw angle play ax,ay: 0.5 deg
- Max. Force at gripping jaws Fz static: 7 N.
- Max. Moment at gripping jaws Mx static: 20 Ncm
- Max. Moment at gripping jaws My static: 20 Ncm
- Max. Moment at gripping jaws Mz static: 20 Ncm
- Max. Opening angle 17 degrees
- Min Opening time at 6 bar: 2.7 ms
- Min Closing time at 6 bar: 1.2 ms
- Pneumatic connection: M3
- Position detection: None
- Product weight: 20 g
- Ambient temperature: 5 ... 60 °C
- Material covering cap: POM
- Housing material: High-alloy steel stainless
- Material gripping jaws: High-alloy steel
- Material information: Free of copper and PTFE
- Repeat accuracy of gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Type
185695
- Product type
Angled gripper
- Enclosure material
Steel (stainless)
- Connection
M3
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
185695
- Operating pressure (min.)
2 bar
- Sealant
Stainless steel
- Accuracy (+/-)
0.02 mm
- Weight
13 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Single-acting
- UKCA
yes
