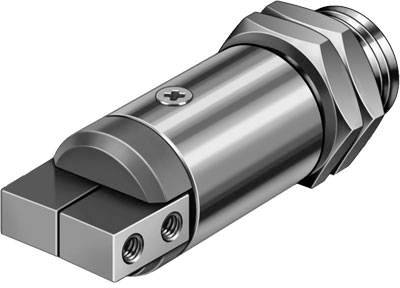

FESTO 185697 HGWM-08-EZ-G7 Angled gripper Enclosure material: Steel (stainless) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- No. of jaws: 2
- Size: 8
- Fastening method: With lock nut
- Operating pressure: 2 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Spring return torque 0.55 Ncm
- Operation: Single-acting
- closed
- Open total gripping torque at 6 bar: 24 Ncm
- Gripper function: Angle
- Constructive structure: Inclined plane
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Max. Working frequency gripper: 4 Hz
- Max. Gripping jaw play Sz: 0.03 mm
- Max. Jaw angle play ax,ay: 0.5 deg
- Max. Force at gripping jaws Fz static: 7 N.
- Max. Moment at gripping jaws Mx static: 20 Ncm
- Max. Moment at gripping jaws My static: 20 Ncm
- Max. Moment at gripping jaws Mz static: 20 Ncm
- Max. Opening angle 14 degrees
- Min Opening time at 6 bar: 1 ms
- Min Closing time at 6 bar: 2.5 ms
- Pneumatic connection: M3
- Position detection: None
- Product weight: 14 g
- Ambient temperature: 5 ... 60 °C
- Material covering cap: POM
- Housing material: High-alloy steel stainless
- Material gripping jaws: High-alloy steel
- Material information: Free of copper and PTFE
- Repeat accuracy of gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Type
185697
- Product type
Angled gripper
- Enclosure material
Steel (stainless)
- Connection
M3
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
185697
- Operating pressure (min.)
2 bar
- Accuracy (+/-)
0.02 mm
- Weight
14 g
- Medium
Compressed air
- Control pressure (max.)
8 bar
- Control pressure (min.)
2 bar
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203755 FESTO 185697 HGWM-08-EZ-G7 Angled gripper Enclosure material: Steel (stainless) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
