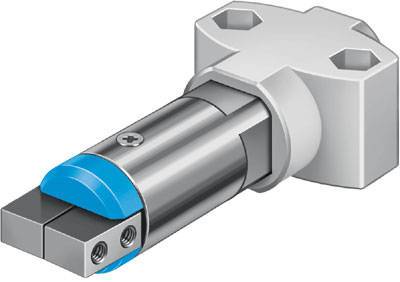

FESTO 185702 HGWM-12-EZ-G6 Angled gripper Enclosure material: Steel (stainless) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Number of jaws: 2
- Size: 12
- Type of mounting: With internal thread
- Operating pressure: 2 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Spring force of lift compensation: 10 ... 23 N
- Spring-reset torque: 1.5 Ncm
- Function: Single-acting
- closed
- Total gripping torque at 6 bar open: 76 Ncm
- Gripper function: Angle
- of constructive construction: Inclined plane
- Corrosion-resistance class KBK: 2 - moderate corrosion stress Max.
- Working frequency gripper: 4 Hz
- Max. Gripping jaw play SZ: 0.03 mm
- Max. Jaw angle play ax,ay: 0.5 deg
- Max. Force at gripping jaws Fz static: 20 N
- Max. Moment at gripping jaws MX static: 40 Ncm
- Max. Moment at gripping jaws My static: 40 Ncm
- Max. Moment at gripping jaws MZ static: 40 Ncm
- Max. Opening angle: 14 deg
- min. Opening time at 6 bar: 1.7 ms
- min. Closing time at 6 bar: 2.8 ms
- Pneumatic connection: M3
- Position detection: Without
- product weight: 75 g
- Ambient temperature: 5 ... 60 °C
- Material covering cap: POM
- Material Housing: High alloyed steel Stainless
- material Gripping jaws: High alloyed steel
- Material information: Copper and PTFE-free
- Repeatability Gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Product type
Angled gripper
- Enclosure material
Steel (stainless)
- Connection
M3
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
185702
- Operating pressure (min.)
2 bar
- Accuracy (+/-)
0.02 mm
- Weight
75 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Single-acting
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203760 FESTO 185702 HGWM-12-EZ-G6 Angled gripper Enclosure material: Steel (stainless) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
