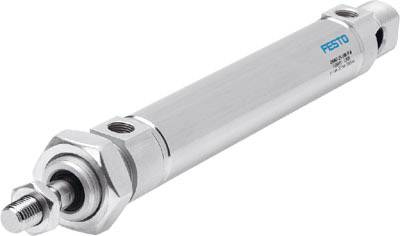

FESTO 19184 DSNU-10-25-P-A Round cylinder Enclosure material: Aluminium wrought alloy Stroke length: 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
14-day return policy included
Highlights & Details
Round cylinder DSNU-10-25-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
25 mm
- Min. operating pressure
1.5 bar
- Max. operating pressure
10 bar
- (Ø)
10 mm
- Manufacturer part #
19184
- Weight
37.3 g
- Size
10
- Thread mount
M4
- Sealant
NBR
Polyurethane
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston diameter
10 mm
- Piston rod material
Steel
- Piston rod thread
M4
- Force (max.)
47.1 N
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
