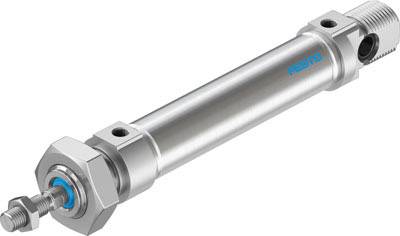

FESTO 19229 DSNU-16-40-PPV-A Round cylinder Enclosure material: Aluminium wrought alloy Stroke length: 40 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
14-day return policy included
Highlights & Details
Round cylinder DSNU-16-40-PPV-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
40 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
16 mm
- Manufacturer part #
19229
- Weight
89.9 g
- Size
16
- Thread mount
M6
- Sealant
NBR
Polyurethane
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston diameter
16 mm
- Piston rod material
Steel
- Piston rod thread
M6
- Force (max.)
120.6 N
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
