FESTO 19249 DSNU-25-125-PPV-A Round cylinder Enclosure material: Aluminium wrought alloy Stroke length: 125 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Only 1 Piece(s) available
Highlights & Details

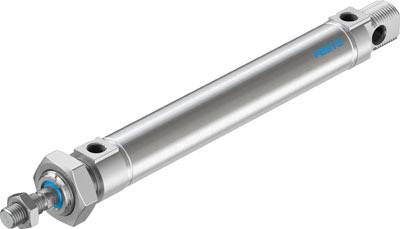

Round cylinder DSNU-25-125-PPV-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
125 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
25 mm
- Manufacturer part #
19249
- Weight
238 g
- Size
25
- Sealant
NBR
Polyurethane
- Pneumatics connector
G1/8"
- Enclosure material
Aluminium wrought alloy
- Piston diameter
25 mm
- Piston rod material
Steel
- Piston rod thread
M10 x 1.25
- Force (max.)
294.5 N
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
