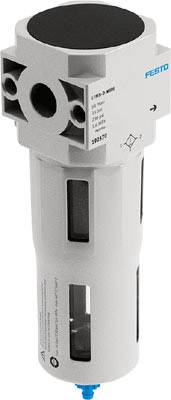

FESTO 192558 LF-D-5M-MIDI Enclosure material Zinc (die-cast) 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Mounting type: cable installation, with accessories
- Material Filter: PE
- Size: Midi
- Filter mesh: 5µm
- Material shell: PC
- Product type
Line filter
- Max. operating pressure
16 bar
- Manufacturer part #
192558
- Operating medium
Inert Gases, compressed air
- Size
Midi
- Operating pressure (min.)
0 bar
- Enclosure material
Zinc (die-cast)
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Connection
Connector plate
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Type
LF-D-5M-MIDI
- Weight
700 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2117299 FESTO 192558 LF-D-5M-MIDI Enclosure material Zinc (die-cast) 1 pc(s)
Description
Filter LF-D-5M-MIDI without thread connection plates with FRB-threaded bolts. Filter mesh 5 µm, with a protective basket and manual condensate drain. Size = Midi, Series= D, mounting position = vertically +/-5°, filter mesh = 5 µm, condensate drain manual turning
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
