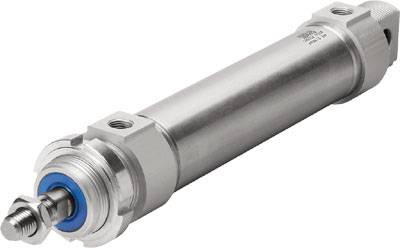

FESTO 195993 DSNU-40-80-P-A Round cylinder Stroke length: 80 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
Round cylinder DSNU-40-80-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
80 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: aluminum wrought alloy
- Manufacturer part #
195993
- Type
Mounting type: with accessories
- Weight
853 g
- Size
40
- Operating medium
Compressed air
- Sealant
NBR
TPE-U
- Pneumatics connector
G1/4"
- Piston diameter
40 mm
- Piston rod material
Steel
- Piston rod thread
M12 x 1.25
- Force (max.)
752.9 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
