FESTO 196378 ESNU-32-50-P-A Round cylinder Stroke length: 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details

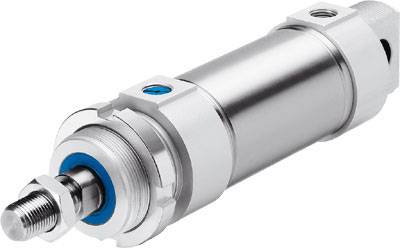

Round cylinder ESNU-32-50-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
50 mm
- Min. operating pressure
1.2 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: aluminum wrought alloy
- Manufacturer part #
196378
- Type
Mounting type: with accessories
- Weight
448 g
- Size
32
- Sealant
NBR
TPE-U
- Pneumatics connector
G1/8"
- Piston diameter
32 mm
- Piston rod material
Steel
- Piston rod thread
M10 x 1.25
- Force (max.)
442.2 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1944665 FESTO 196378 ESNU-32-50-P-A Round cylinder Stroke length: 50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944665 FESTO 196378 ESNU-32-50-P-A Round cylinder Stroke length: 50 mm 1 pc(s)
