Name: FESTO 2095360 HPVS-14-20-A Separator 1 pc(s)
Brand: FESTO
SKU: 2204785
Availability: BackOrder

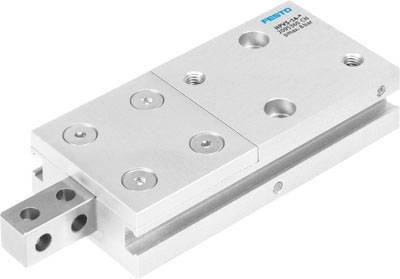

Rectangular metal linear guide slide with multiple screw holes, marked 'Festo DWDS-16-20'.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 489.00 / piece)

€ 489.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Alternative connections: M5
Extension time: 50 ms
External finger attachment: Through hole
Fastening method: Optional:
Internal thread and centering sleeve
With through hole and centering sleeve
Operating pressure: 3 ... 8 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
Damping: No damping
All mounting positions permitted
Running-in time: 138 ms
Operation: Double-acting
Note on operating and control medium: Oiled operation possible (required in further operation)
Stroke: 20 mm
Piston diameter 14 mm
Design: Piston rod
anti-twist protection
Corrosion resistance class KBK: 2 - moderate corrosion stress
Max. Replacement accuracy 0.3 mm
Max. Jaw angle play ax: 0.12 deg
Max. Jaw angle play ay: 0.2 Deg
Max. Jaw angle play az: 0.175 deg
Max. Force on finger Fz static: 100 N.
Max. Mass per external gripper 150 g
Max. Moment on finger Mr. static: 5 Nm
Max. Moment on finger Mx static: 5 Nm
Max. Moment on finger My static: 5 Nm
Max. Plunger play Sx:0.05 mm
Max. Tappet clearance Sz: 0.03 mm
Pneumatic connection: M5
Position detection: For proximity switches
Product weight: 183 g
Theoretical force at 6 bar, return: 75 N.
Theoretical force at 6 bar, forward: 90 N.
Ambient temperature: 5 ... 60 °C
Anti-twist/guide: Square guide
Material information: Free of copper and PTFE
Complies with RoHS
Repeatability 0.15 mm

Operating medium: Compressed Air

Product type: Separator

Connection: M5

Max. operating pressure: 8 bar

Operating temperature: 5 °C (min)

Min. operating temperature: 5 °C

Manufacturer part #: 2095360

Operating pressure (min.): 3 bar

Accuracy (+/-): 0.15 mm

Weight: 183 g

Medium: Compressed air

Max. ambient temperature: +60 °C

Min. ambient temperature: +5 °C

Operating principle: Double-acting

UKCA: not relevant
