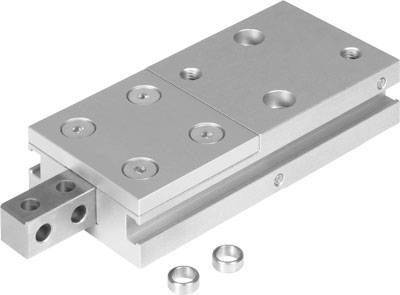

FESTO 2095361 HPVS-14-40-A Separator 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 483.19 / piece)
€ 483.19
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Alternative connections: M5
- Extension time: 105 ms
- External finger attachment: Through hole
- Fastening method: Optional:
- Internal thread and centering sleeve
- With through hole and centering sleeve
- Operating pressure: 3 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- Damping: No damping
- All mounting positions permitted
- Run-in time: 150 ms
- Operation: Double-acting
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Stroke: 40 mm
- Piston diameter 14 mm
- Design: Piston rod
- anti-twist protection
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Max. Replacement accuracy 0.3 mm
- Max. Jaw angle play ax: 0.07 degg
- Max. Jaw angle play ay: 0.12 deg
- Max. Jaw angle play az: 0.175 deg
- Max. Force on finger Fz static: 100 N.
- Max. Mass per external gripper 150 g
- Max. Moment on finger Mr. static: 5 Nm
- Max. Moment on finger Mx static: 5 Nm
- Max. Moment on finger My static: 5 Nm
- Max. Plunger play Sx:0.05 mm
- Max. Tappet clearance Sz: 0.03 mm
- Pneumatic connection: M5
- Position detection: For proximity switches
- Product weight: 290 g
- Theoretical force at 6 bar, return: 75 N.
- Theoretical force at 6 bar, forward: 90 N.
- Ambient temperature: 5 ... 60 °C
- Anti-twist/guide: Square guide
- Material information: Free of copper and PTFE
- Complies with RoHS
- Repeatability 0.15 mm
- Operating medium
Compressed Air
- Type
2095361
- Product type
Separator
- Connection
M5
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
2095361
- Operating pressure (min.)
3 bar
- Accuracy (+/-)
0.15 mm
- Weight
290 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204786 FESTO 2095361 HPVS-14-40-A Separator 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
