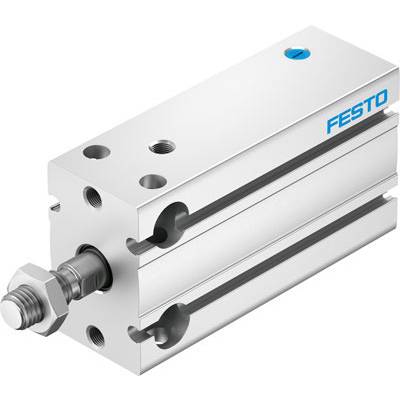

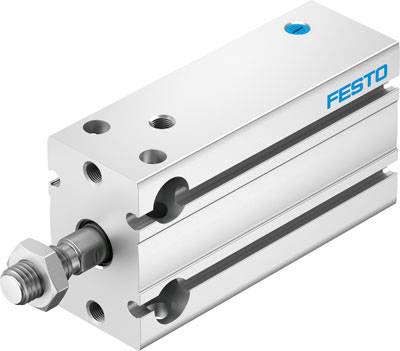

FESTO 4829129 DPDM-32-5-P-PA Compact cylinder Stroke length: 5 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Compact cylinder DPDM-32-5-P-PA
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
5 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
4829129
- Type
Compact cylinder -32-5 DPDM-P-PA hub = 5 mm, piston diameter = 32 mm, attenuation=P: elastic damping rings/plates on both sides, mounting position=any, mode of operation = (*) * single-acting, pulling
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
32 mm
- Force (max.)
377 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
