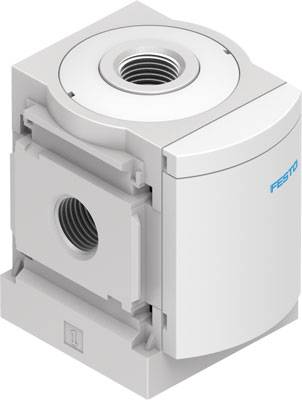

FESTO 529853 MS6-FRM-1/2 Splitter Max. operating pressure 20 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Technical specifications
- Product type
Splitter
- Type
MS6-FRM-1/2
- Max. operating pressure
20 bar
- Manufacturer part #
529853
- Weight
458 g
- Enclosure material
Aluminium (die-cast)
- Operating pressure (min.)
0 bar
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2799743 FESTO 529853 MS6-FRM-1/2 Splitter Max. operating pressure 20 bar
User & Safety Instructions
User & Safety Instructions 2799743 FESTO 529853 MS6-FRM-1/2 Splitter Max. operating pressure 20 bar
Description
Branch module MS6-FRM-1/2 Flow direction from left to right. Mounting position=arbitrary, design=branch module, operating pressure=0 - 20 bar, normal nominal flow in main flow direction 1->2=14700 l/min, normal nominal flow outlet up=4400 l/min.
