FESTO 537151 MS12-LF-G-EUV Line filter 12 bar 40 µm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
14-day return policy included
Highlights & Details

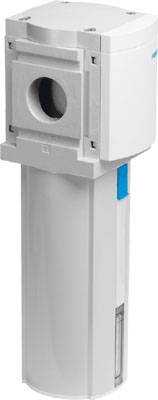

Line filter MS12-LF-G-EUV
Technical specifications
- Sintered filter with centrifugal separator
- Product type
Line filter
- Max. operating pressure
12 bar
- Material
Aluminium (die-cast)
- Material (filter)
Sintered bronze
- Operating medium
ISO 8573-1:2010 [7:-:-] compliance
- Manufacturer part #
537151
- Operating medium
Inert Gases;; Compressed air according to ISO 8573-1:2010 [7:9 :-]
- Filter pore size
40 µm
- Size
12
- Operating pressure (min.)
2 bar
- Sealant
NBR
- Enclosure material
Aluminium (die-cast)
- Max. media temperature
+60 °C
- Media temperature (min.)
-5 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-5 °C
- Type
Filter MS 12-LF-G-teu 40 µm filter, metal bowl, fully automatic condensate drain, flow direction from left to right. Size = 12, series = MS, mounting position = vertically +/-5°, filter mesh = 40 µm, condensate drain = (* fully automatic, * manually momentary)
- Max. flow
16000 l/min
- Weight
7000 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1937988 FESTO 537151 MS12-LF-G-EUV Line filter 12 bar 40 µm
User & Safety Instructions
User & Safety Instructions 1937988 FESTO 537151 MS12-LF-G-EUV Line filter 12 bar 40 µm
