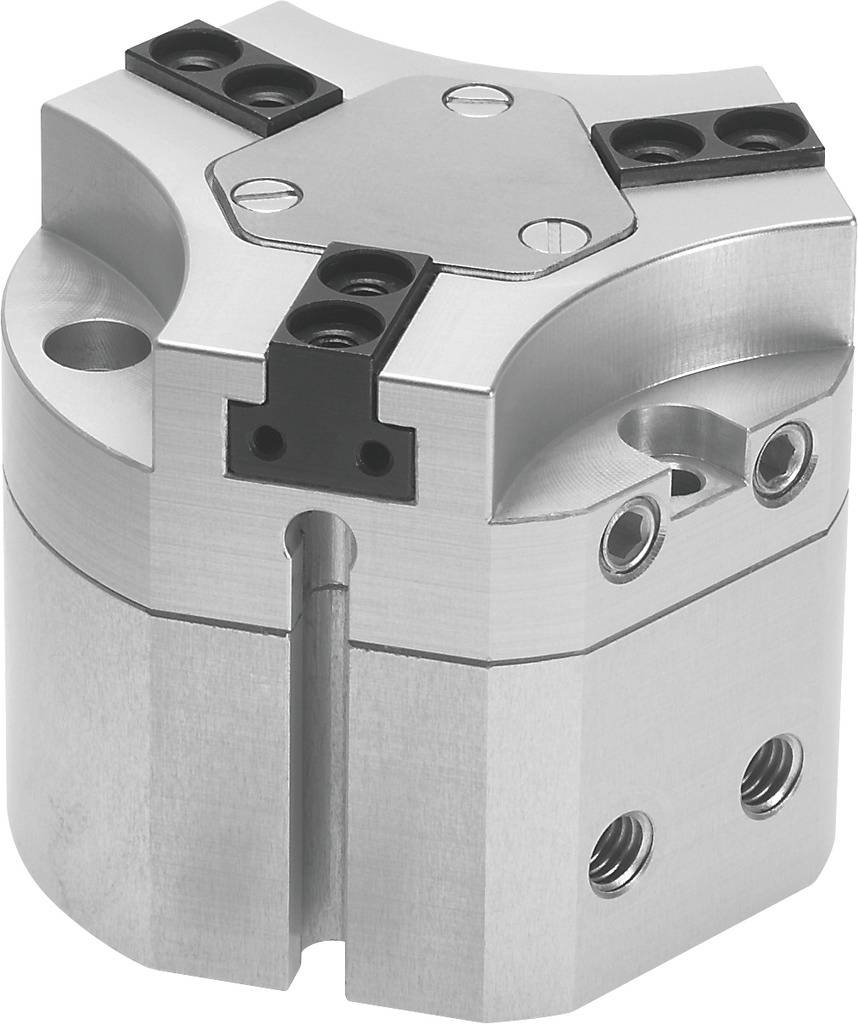

FESTO 540860 HGDT-25-A-G1 3-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,021.01 / piece)
€ 1,021.01
plus VAT.
Highlights & Details
3-finger gripper HGDT-25-A-G1
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
3-finger gripper
- Enclosure material
Aluminium wrought alloy
- Connection
M5
- Max. operating pressure
8 bar
- Operating temperature
+5 up to +60 °C
- Min. operating temperature
+5 °C
- Max. operating temperature
+60 °C
- Manufacturer part #
540860
- Operating pressure (min.)
4 bar
- Accuracy (+/-)
0.2 mm
- Medium
ISO 8573-1:2010 [1:4:1] compliance
- Operating principle
Double-acting
Documents & Downloads
Datasheet
Datasheet 1936908 FESTO 540860 HGDT-25-A-G1 3-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1936908 FESTO 540860 HGDT-25-A-G1 3-finger gripper Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
