FESTO 541701 DADM-DGC-32-A Intermediate position module 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 542.02 / piece)
€ 542.02
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product type
Intermediate position module
- Min. operating pressure
2.5 bar
- Max. operating pressure
8 bar
- Manufacturer part #
541701
- Weight
530 g
- Size
32
- Thread mount
QS - 4
- Sealant
NBR
- Material
Aluminium wrought alloy
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2119074 FESTO 541701 DADM-DGC-32-A Intermediate position module 1 pc(s)
Description

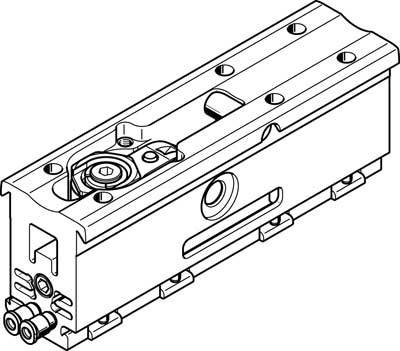

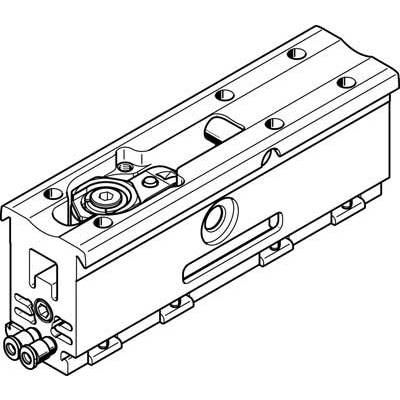

Intermediate position module DADM-DGC-32-A for linear drive DGC and DGCI. Size = 32, mounting position=any, position detection = for proximity switches, operating pressure = 2.5 - 8 bar, max. Impact speed = 3 m/s
